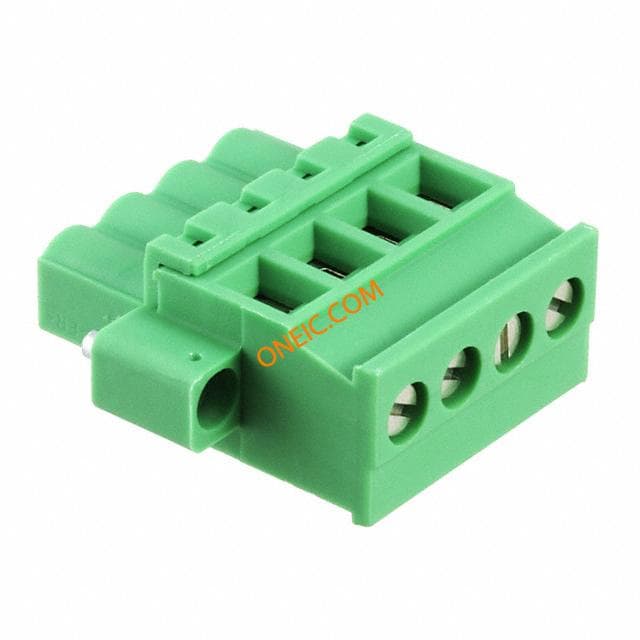

点击放大查看
对参数有疑问？问 AI 助手
Business
| Product | Headers | Lead Time | 20 Days |
| Tradename | COMBICON Control | Subcategory | Connector Headers and PCB Receptacles |
| Product Category | Pluggable Terminal Blocks | Standard Package | 250 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 250 V | Number of Poles | 4 |
| Current Rating (Max) | 12 A | Voltage - Supply (Min) | 250V |
Mechanical
| Color | Green | Depth | 12 mm |
| Pitch | 0.200" (5.08mm) | Height | 8.6 mm |
| Weight | 5.396916 oz | Packaging | Bulk |
| Orientation | angled | Termination | Solder |
| Pitch - Post | 5.08mm | Mounting Type | Through Hole |
| Connector Type | male | Contact Finish | Tin |
| Mounting Style | Through Hole | Contact Material | 锡 |
| Housing Material | Polybutylene Terepht | Length - Overall | 30.48 mm |
| Package Quantity | 10 | Termination Rows | 焊接 |
| Connector - Cable | socket | Termination Style | Through Hole |
| Header Orientation | 90°, Right Angle | Number of Contacts | 4 |
| Number of Positions | 4 | Terminal Block Type | Header, Male Pins, Shrouded (4 Side) |
Product Info
| Spg | 10 | Type | Wire to Board |
| Gender | HDR | Series | MSTB |
| Features | Flange | Number of Units | 1 |
| Industry Aliases | MSTB 2, 5/ 4-GF-5, 08 | Number of Levels | 1 |
| Positions Per Level | 4 | ||
Documents & Media
PDF Document
Sourcing & traceability
- Datasheet
- 1776524
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
