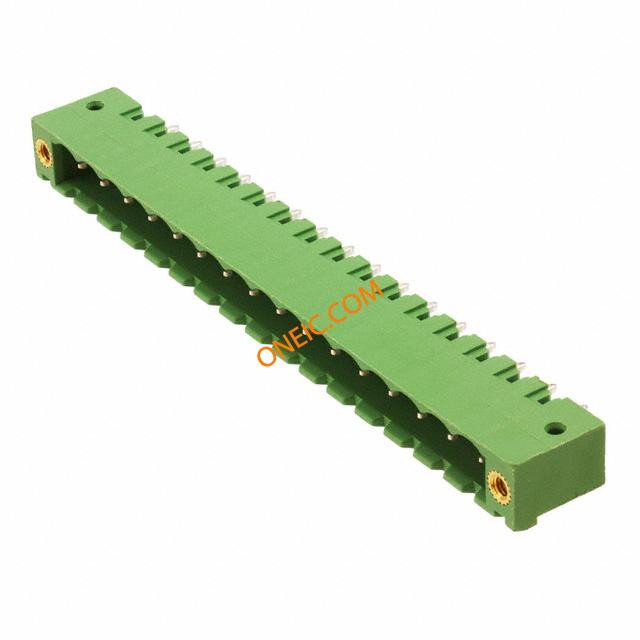

1777028
| Manufacturer | |
| Description | プラグ着脱可能ターミナルブロック MSTBV 2 5/16-GF Conn Shrouded Header HDR 16 POS 5mm Solder ST Thru-Hole TERM BLOCK HDR 16POS VERT 5MM Header for PCB plug connector MSTBV 2,5/16-GF Pluggable Terminal Blocks MSTBV 2 5/16-GF MSTBV25/16-GF Phoenix Contact COMBICON MSTBV 系列 16路 5mm节距 PCB 接线端子块 , 焊接端接, 12A |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Headers | Lead Time | 20 Days |
| Tradename | COMBICON Control | Subcategory | Connector Headers and PCB Receptacles |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current | 12A | Voltage | 300V |
| Voltage Rating | 250 V | Current Rating (Max) | 12 A |
| Voltage - Input (Min) | 320V | ||
Mechanical
| Color | Green | Depth | 8.6 |
| Pitch | 0.197" (5.00mm) | Height | 12 |
| Weight | 2 lbs | Packaging | Bulk |
| Termination | Solder | Housing Color | Green |
| Mounting Type | Straight | Contact Finish | Tin |
| Number of Rows | 1 | Contact Material | 锡 |
| Housing Material | Polybutylene Terephthalate | Length - Overall | 90 |
| Termination Rows | 焊接 | Termination Style | Through Hole |
| Header Orientation | Vertical | Number of Contacts | 16 |
| Number of Positions | 16 | Terminal Block Type | Header, Male Pins, Shrouded (4 Side) |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | MSTBV | Features | Flange |
| Industry Aliases | MSTBV 2, 5/16-GF | Number of Levels | 1 |
| Positions Per Level | 16 | ||
