1788761
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Plugs | Tradename | COMBICON Control |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-2 | ||
Electrical
| Current - UL | 12A | Voltage - UL | 250V |
| Current - IEC | 12A | Voltage - IEC | 320V |
| Voltage Rating | 320 V | Current Rating (Max) | 12 A |
| Voltage - Input (Min) | 320V | ||
Mechanical
| Color | Green | Depth | 28 |
| Pitch | 5.08mm | Height | 31.4 |
| Length | 1.260" (32.00mm) | Weight | 7.407532 oz |
| Wire Gauge | 24 | Termination | Screw |
| Height (Max) | 1.181" (30.00mm) | Housing Color | Green |
| Mounting Type | DIN Rail | Contact Finish | Tin |
| Number of Rows | 1 | Housing Material | Polyamide |
| Length - Overall | 32 | Stripping Length | 7mm |
| Terminal - Width | 27.2mm | Termination Rows | 螺钉 |
| Termination Style | Plug Receptacles, Screw | Number of Contacts | 6 |
| Number of Positions | 6 | Material - Insulation | Polyamide (PA), Nylon |
| Wire Gauge or Range - AWG | 12-30 AWG | Wire Gauge or Range - mm2 | 0.2-2.5mm² |
Product Info
| Type | Terminal Block | Gender | M |
| Series | MSTBVK | Number of Levels | 1 |
Similar Parts
1755477
Phoenix Contact
$0.9928
Details
1763948
Phoenix Contact
$20.4000
Details
1951941
Phoenix Contact
$31.6608
Details
1758380
Phoenix Contact
$9.3627
Details
1776184
Phoenix Contact
$36.8560
Details
1826322
Phoenix Contact
$32.2320
Details
1776126
Phoenix Contact
$94.3371
Details
1752483
Phoenix Contact
$366.2548
Details
1778027
Phoenix Contact
$30.5252
Details
1734401
Phoenix Contact
$0.5168
Details
1883297
Phoenix Contact
$36.9240
Details

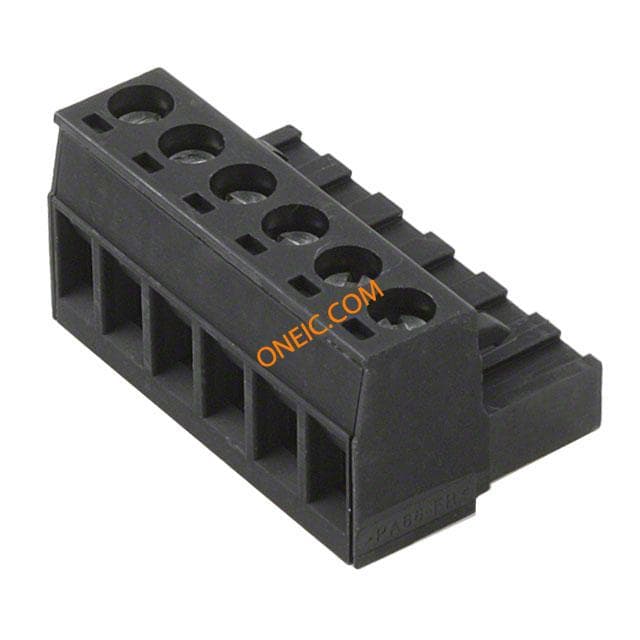

1758830
Phoenix Contact
$23.0520
Details

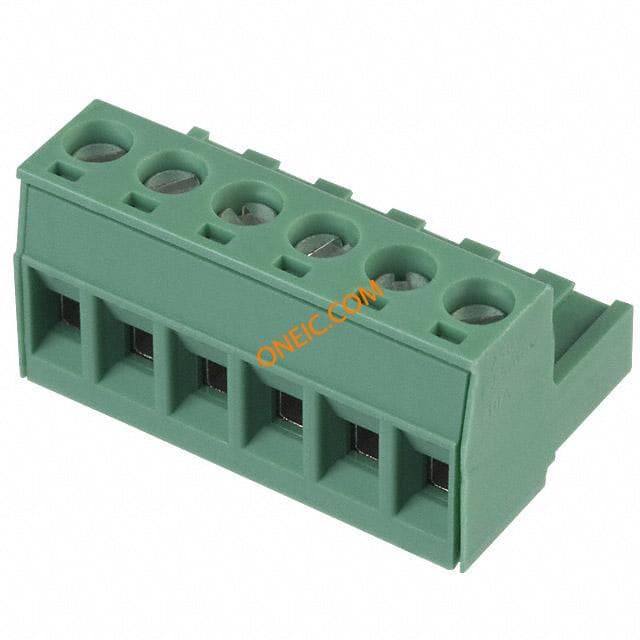

1912003
Phoenix Contact
$27.2680
Details
1733169
Phoenix Contact
$5.8616
Details
1757051
Phoenix Contact
$30.6680
Details
1841336
Phoenix Contact
$40.5960
Details
1838514
Phoenix Contact
$28.5600
Details
1948750
Phoenix Contact
$36.6180
Details

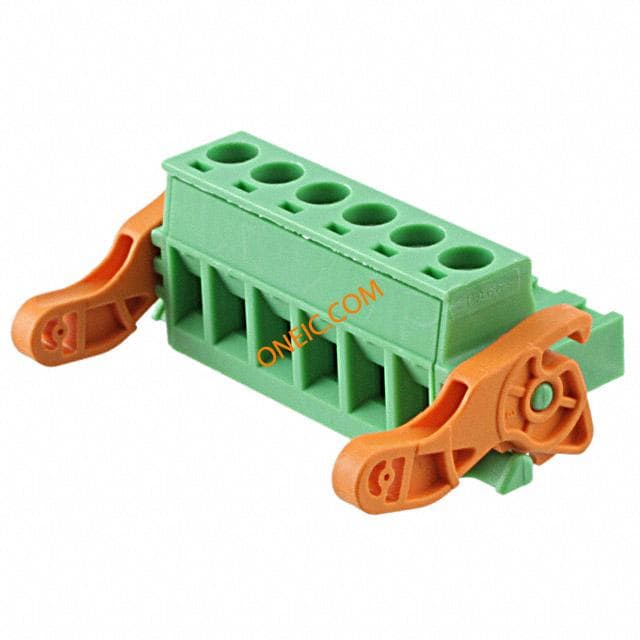

1808925
