1803400
| Manufacturer | |
| Description | Pluggable Terminal Blocks 3.81 15P HEADER 90DE Conn Wire to Board HDR 15 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 15POS R/A 3.81MM Header for PCB plug connector MC 1,5/15-G-3,81 Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;15Pole;3.81mmPitch;COMBICON |
| Category |
Business
| Product | Headers | Tradename | COMBICON Control |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Standards | CSACertified,cULListed,ULListed | Approval Agency | UL,CUL,CSA |
Electrical
| Current | 8A | Voltage | 300V |
| Voltage Rating | 160 V | Number of Poles | 15Poles |
| Current - Output | 8A | Voltage - Nominal | 160V |
| Current Rating (Max) | 8 A | Voltage - Input (Min) | 160V |
| Voltage - Supply (Min) | 160V | Voltage - Protection Level (VP) (2416) | 2.5kV |
Mechanical
| Color | Green | Depth | 9.2 mm |
| Pitch | 0.150" (3.81mm) | Height | 7.25 mm |
| Weight | 4 oz | Packaging | Bulk |
| Termination | Solder | Hole Diameter | 1.2mm |
| Housing Color | Green | Mounting Type | Right Angle |
| Contact Finish | Tin | Mounting Style | Through Hole |
| Number of Rows | 1 | Housing Material | Polybutylene Terephthalate |
| Length - Overall | 58.54 mm | Primary Material | PCB |
| Size / Dimension | 58.54mmLx18.7mmWx11.1mmH | Pin Hole Diameter | 3.81mm |
| Termination Style | Through Hole | Header Orientation | 90°, Right Angle |
| Number of Contacts | 15 | Number of Positions | 15 |
| Terminal Block Type | Header, Male Pins, Shrouded (4 Side) | Material - Insulation | PBT |
| Pin Size - Below Flange | 0.8x0.8mm | ||
Product Info
| Type | Wire to Board | Level | SingleLevel |
| Gender | HDR | Series | MC |
| Features | 90Deg | Manufacturer | COMBICON |
| Number of Levels | 1 | Base Product Number | MC1,5/15-G-3,81 |
| Positions Per Level | 15 | ||
Documents & Media
Similar Parts
1897526
Phoenix Contact
Pluggable Terminal Blocks QC 0 5/15-ST-3 81 Conn Terminal Block F 15 POS 3.81mm ST Cable Mount 6A TERM BLOCK PLUG 15POS STR 3.81MM QC05/15-ST-381 Phoenix Contact MINI COMBICON QC 系列 3.81mm 节距 15 路 母 绿色 插头, IDC端接
1851177
Phoenix Contact
Pluggable Terminal Blocks FK-MCP 1.5/15-ST-3.81 Conn Terminal Block F 15 POS 3.81mm ST Cable Mount 8A TERM BLOCK PLUG 15POS STR 3.81MM Printed-circuit board connector FK-MCP 1,5/15-ST-3,81 FK-MCP15/15-ST-381 Phoenix Contact MINI COMBICON FK-MCP 系列 3.81mm 节距 15 路 母 绿色 插头, 弹簧笼端接
1803701
Phoenix Contact
Pluggable Terminal Blocks 15P 3.81mm 180 DEG Conn Terminal Block F 15 POS 3.81mm Screw RA Cable Mount 8A TERM BLOCK PLUG 15POS STR 3.81MM Printed-circuit board connector MC 1,5/15-ST-3,81 Conn;TermBlk;Plug;Screw;15;3.81mm;30-14AWG;8A;300V;PA;M2
1862700
Phoenix Contact
Pluggable Terminal Blocks IMC 1.5/15-G-3.81 Conn Wire to Board RCP 15 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 15POS R/A 3.81MM Header, nominal current: 8 A, rated voltage: 160 V, pitch: 3.81 mm, no. of positions: 15, mounting: Soldering IMC15/15-G-381 Phoenix Contact MINI COMBICON IMC 系列 3.81mm 节距 15 路 反相管座, 焊接端接
1827253
Phoenix Contact

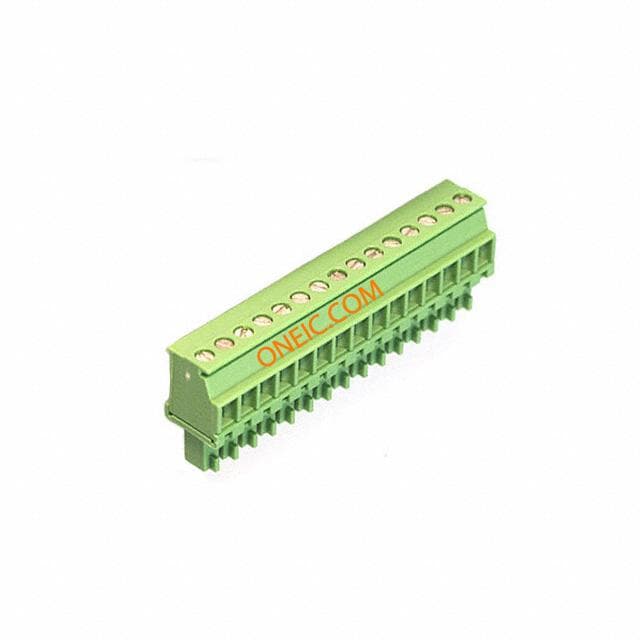

Pluggable Terminal Blocks 15P 3.81mm 90DEG Conn Terminal Block F 15 POS 3.81mm Screw ST Cable Mount 8A TERM BLOCK PLUG 15POS 3.81MM Printed-circuit board connector MCVR 1,5/15-ST-3,81 Conn;TermBlk;Plug;Screw;15;3.81mm;30-14AWG;8A;300V;PA;M2
1827101
Phoenix Contact

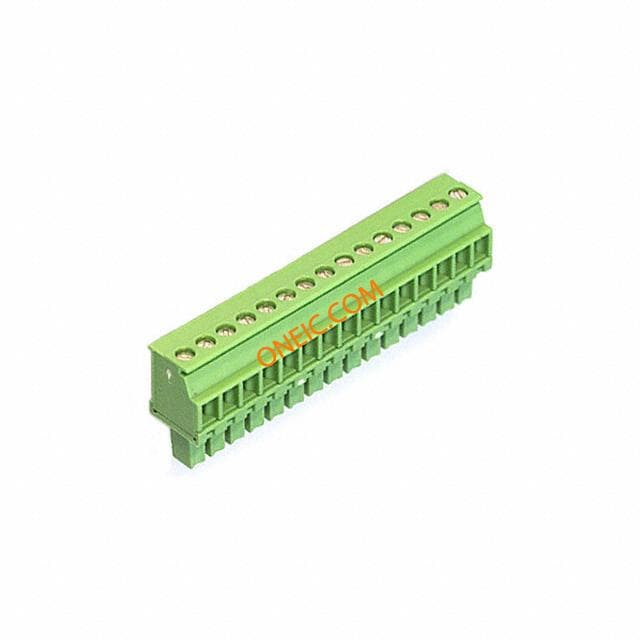

Pluggable Terminal Blocks 15P 3.81mm 270DEG Conn Terminal Block F 15 POS 3.81mm Screw ST Cable Mount 8A TERM BLOCK PLUG 15POS 3.81MM Printed-circuit board connector MCVW 1,5/15-ST-3,81 Conn;TermBlk;Plug;Screw;15;3.81mm;30-14AWG;8A;300V;PA;M2
