点击放大查看
1875506
| Manufacturer | |
| Description | Pluggable Terminal Blocks IMCV 1.5/10-G-3.81 Conn Wire to Board HDR 10 POS 3.81mm Solder ST Thru-Hole TERM BLOCK HDR 10POS VERT 3.81MM Header for PCB plug connector IMCV 1,5/10-G-3,81 HEADER,PITCH:3.81MM,POS10 |
| Category |
商业参数
| 产品 | Headers - Inverted | 商标名 | COMBICON Control |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 | 8A | 电压 | 300V |
| 额定电压 | 160 V | 最大额定电流 | 8 A |
| 最小输入电压 | 160V | ||
机械参数
| 颜色 | Green | 深度 | 7.25 |
| 间距 | 0.150" (3.81mm) | 高度 | 9.2 |
| 重量 | 0.119226 oz | 包装方式 | Bulk |
| 端接方式 | Solder | 外壳颜色 | Green |
| 安装类型 | Straight | 接触镀层 | Tin |
| 排数 | 1 | 壳体材料 | Polybutylene Terephthalate |
| 总长度 | 38.89 | 端接样式 | Through Hole |
| 排针方向 | Vertical | 触点数 | 10 |
| 位数 | 10 | 接线端子类型 | Header, Female Sockets |
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 系列 | IMCV | 层数 | 1 |
| 每层位数 | 10 | ||
Documents & Media
相关型号
1943289
Phoenix Contact
Pluggable Terminal Blocks MC 1.5/10-ST-3.81-AU Conn Terminal Block F 10 POS 3.81mm Screw RA Cable Mount 8A TERM BLOCK PLUG 10POS STR 3.81MM Inverted plug components, plug-in direction parallel to the PCB axis, gold-plated contacts, 10-pos. IMC15/10-ST-381AU
1875920
Phoenix Contact
Pluggable Terminal Blocks MCV 1,5/10-G-3,81 BK Conn Shrouded Header HDR 10 POS 3.81mm TERM BLOCK HDR 10POS VERT 3.81MM MCV15/10-G-381BK

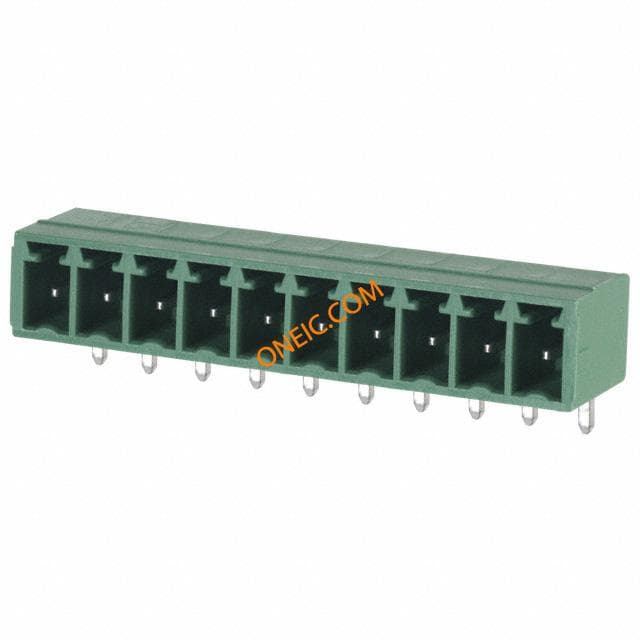

1803358
Phoenix Contact
プラグ着脱可能ターミナルブロック 3.81 10P HEADER 90DE Conn Shrouded Header HDR 10 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 10POS R/A 3.81MM Phoenix Contact MC Series 3.81mm Pitch 10 Way 1 Row Right Angle PCB Header, Solder Termination, 8A Pluggable Terminal Blocks 3.81 10P HEADER 90DE Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;10Pole;3.81mmPitch;COMBICON Phoenix Contact COMBICON MC 系列 3.81mm节距 10路 (1排) 直角 印刷电路板接线端子块, 焊接端接, 8A , 通孔

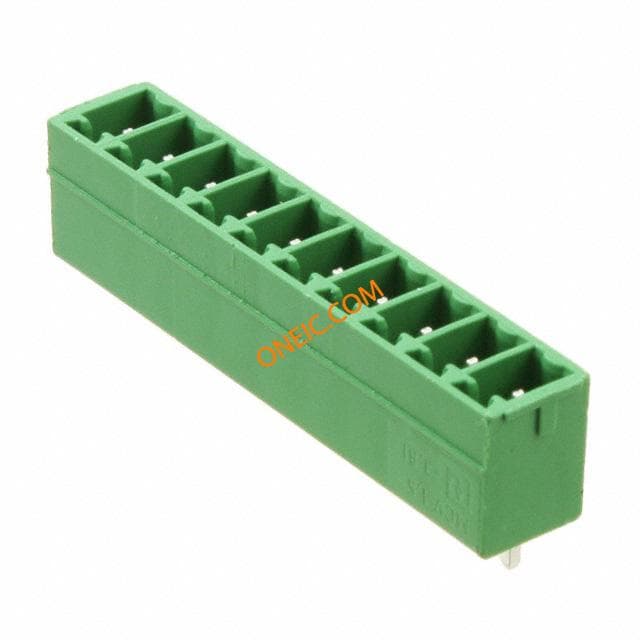

1803507
Phoenix Contact
Pluggable Terminal Blocks 3.81 10P HEADER 180D Conn Shrouded Header HDR 10 POS 3.81mm Solder ST Thru-Hole TERM BLOCK HDR 10POS VERT 3.81MM Phoenix Contact MCV Series 3.81mm Pitch 10 Way 1 Row Straight PCB Header, Solder Termination, 8A Conn Shrouded Header HDR 10 POS 3.81mm Solder ST T HEADER, VERTICAL, 3.81MM, 10WAY Conn;TermBlk;PCB;Header;SnglLvl;Sldr;10Pole;3.81mmPitch;COMBICON Phoenix Contact COMBICON MCV 系列 3.81mm节距 10路 (1排) 直 印刷电路板接线端子块, 焊接端接, 8A , 通孔

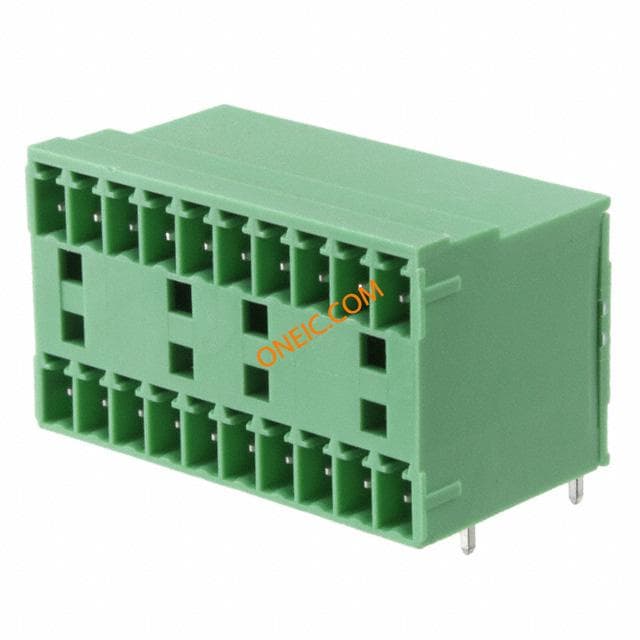

1843156
Phoenix Contact
プラグ着脱可能ターミナルブロック 3.81mm 10P HDR DBL L Conn Wire to Board HDR 20 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 20POS R/A 3.81MM Header for PCB plug connector MCD 1,5/10-G1-3,81 Pluggable Terminal Blocks 3.81mm 10P HDR DBL L HEADER,PITCH:3.81MM,POS10

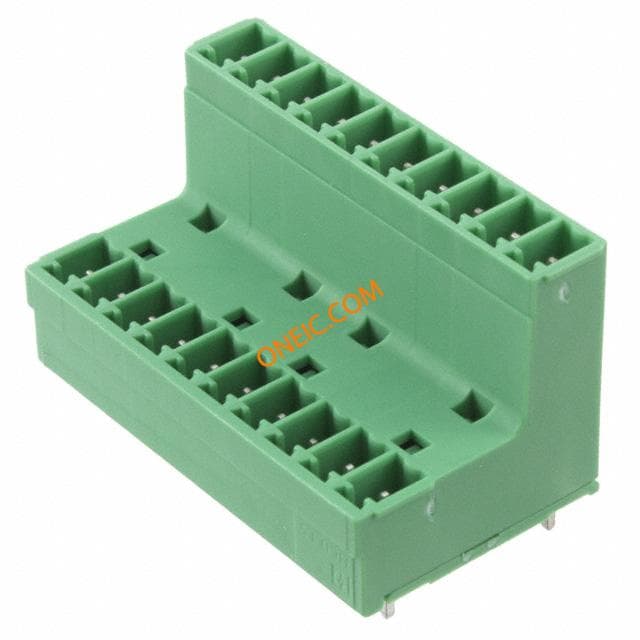

1830486
Phoenix Contact
Pluggable Terminal Blocks 10P 3.81mm Conn Wire to Board HDR 20 POS 3.81mm Solder ST Thru-Hole TERM BLOCK HDR 20POS VERT 3.81MM Header for PCB plug connector MCDV 1,5/10-G-3,81 Conn;TermBlk;PCB;Header;DblLvl;Sldr;10Pole;3.81mmPitch;COMBICON
1861727
Phoenix Contact
Pluggable Terminal Blocks MCO 1.5/10-GR-3.81 3.81mm 10P UP HEADER Conn Wire to Board HDR 10 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 10POS R/A 3.81MM Header, nominal current: 8 A, rated voltage: 125 V, pitch: 3.81 mm, no. of positions: 10, mounting: Soldering MCO15/10-GR-381 Phoenix Contact COMBICON MCO 系列 10路 3.81mm节距 PCB 接线端子块 , 焊接端接
1839746
Phoenix Contact
Pluggable Terminal Blocks MC 1.5/10-G-3.81 BK Conn Shrouded Header HDR 10 POS 3.81mm Solder TERM BLOCK HDR 10POS R/A 3.81MM Header for PCB plug connector MC 1,5/10-G-3,81 BK MC15/10-G-381BK

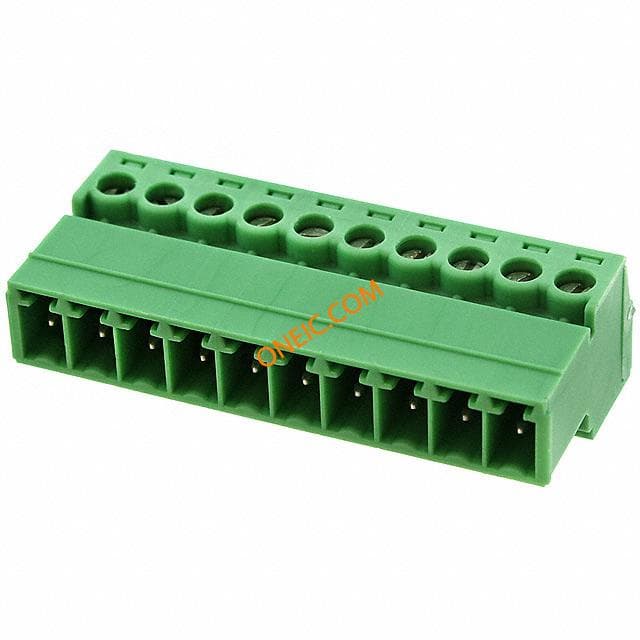

1857964
Phoenix Contact
Pluggable Terminal Blocks IMC 1 5/10-ST-3 81 Conn Terminal Block M 10 POS 3.81mm Screw RA Cable Mount 8A TERM BLOCK PLUG 10POS STR 3.81MM COMBICON PCB plugs IMC 1,5/10-ST-3,81 Conn;TermBlk;Plug;Screw;10;3.81mm;30-14AWG;8A;300V;PA Phoenix Contact MINI COMBICON IMC 系列 3.81mm 节距 10 路 公 绿色 直 反相插头, 电缆安装, 螺钉端接
1860728
Phoenix Contact
Pluggable Terminal Blocks EMCV 1.5/10-G-3.81 Conn Wire to Board HDR 10 POS 3.81mm Press Fit ST Thru-Hole TERM BLOCK HDR 10POS VERT 3.81MM Header for PCB plug connector EMCV 1,5/10-G-3,81 EMCV15/10-G-381 Phoenix Contact COMBICON EMCV 系列 10路 3.81mm节距 PCB 接线端子块 , 按式端接, 8A
1832811
Phoenix Contact
Pluggable Terminal Blocks MCVK 1.5/10-G-3.81 Conn Terminal Block F 10 POS 3.81mm Screw 8A PLUG TERM BLOCK 10POS 3.81MM Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81 mm, Number of positions: 10, Assembly: DIN rail MCVK1,5/10-G-3,81

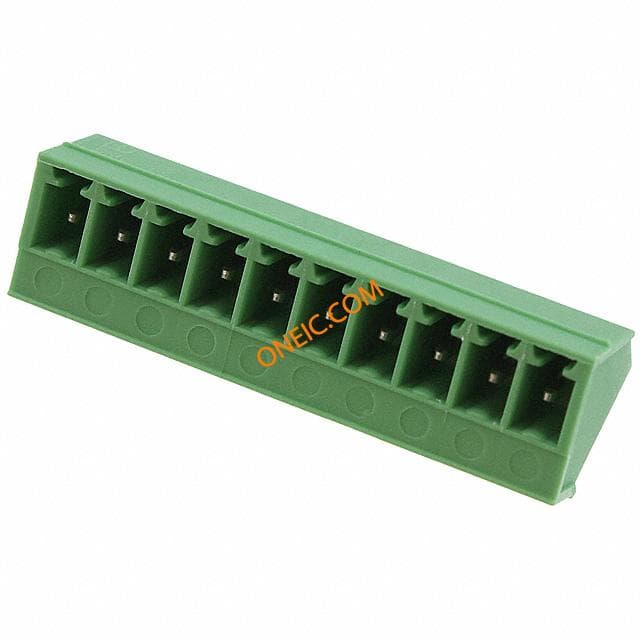

1827350
