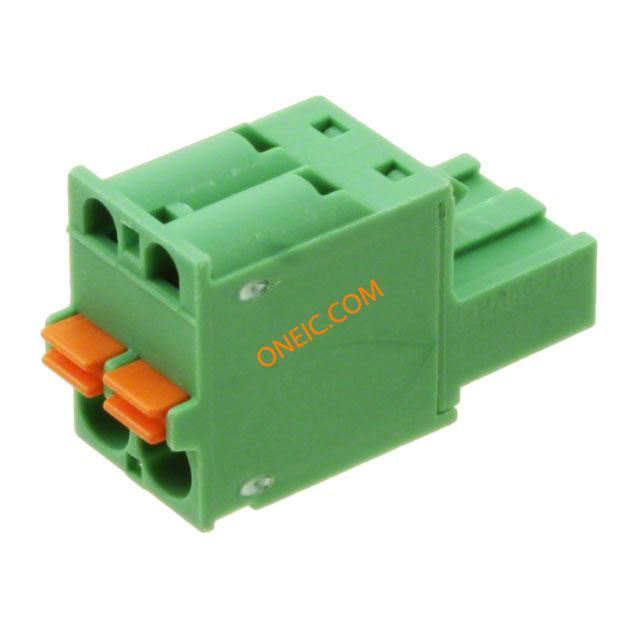

1910351
| Manufacturer | |
| Description | Pluggable Terminal Blocks 12A 250V 2-POS Plug component Conn Terminal Block F 2 POS 5mm ST Cable Mount 12A TERM BLOCK PLUG 2POS STR 5MM Printed-circuit board connector FKC 2,5/ 2-ST Conn;TermBlk;PCB;Plug;Springcage;2;5mm;24-12AWG;Green;12A;250V Phoenix Contact COMBICON FKC 系列 5mm 节距 2 路 母 绿色 直 插头, 电缆安装, 推入式端接 |
| Category |
商业参数
| 产品 | Plugs | 商标名 | COMBICON Control |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 电流 | 12A | 电压 | 300V |
| 额定电压 | 250 V | 输出电流 | 12A |
| 最大额定电流 | 12 A | 最小输入电压 | 320V |
机械参数
| 颜色 | Green | 深度 | 15mm |
| 间距 | 0.197" (5.00mm) | 宽度 | 25.6mm |
| 高度 | 15 | 重量 | 0.117815 oz |
| 材料（通用） | 聚酰胺 | 包装方式 | Bulk |
| 壳体颜色 | Green | 导线线规 | 12-24 AWG |
| 方向 | 直 | 端接方式 | Screwless - Push In |
| 安装类型 | Straight | 连接器类型 | 母座 |
| 接触镀层 | Tin | 排数 | 1 |
| 插头进线方向 | 180° | 触头材料 | Sn |
| 壳体材料 | Polyamide | 总长度 | 10.1 |
| 端接排数 | 推入式 | 插针孔直径 | 5mm |
| 端接样式 | Spring Cage | 触点数 | 2 |
| 位数 | 2 | 接线端子类型 | Plug, Female Sockets |
| 线规或范围 - AWG | 24-12 | ||
产品信息
| 类型 | Terminal Block | 连接器性别 | F |
| 系列 | FKC | 产品特性 | Retention Latches (Non-Wire Side) |
| 层数 | 1 | 每层位数 | 2 |
