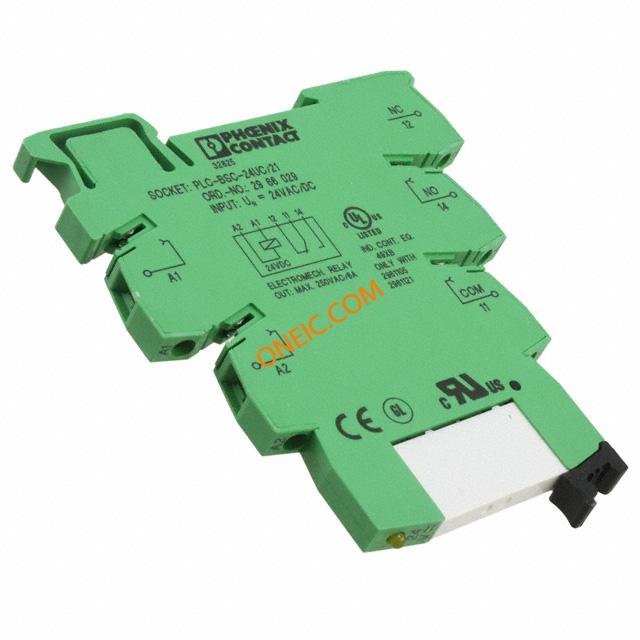

2966184
| Manufacturer | |
| Description | Industrial Relays PLC-RSC- 24UC/21 RELAY PN 651-2961105 Electromechanical Relay SPDT 6A 24VDC 24VAC DIN Rail RELAY GEN PURPOSE SPDT 6A 24V SPDT DIN Rail Panel Mount Interface Relay Module, 250V RELAY, PLC, SPDT, 24VAC/DC, DIN, SCREW PLC-RSCRelayModules,SPDT,6Aat24VACorVDC 单刀双掷 DIN Rail 接口继电器模块, 24V ac |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 20 Days | Tradename | INTERFACE Relay |
| Subcategory | Electromechanical Relay | Product Category | Industrial Relays |
| Standard Package | 10 | Factory Pack Quantity | 10 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85364190 |
Electrical
| Coil Type | Non Latching | Coil Current | 9 mA |
| Release Time | 15ms | Power - Rated | 1.5kVA |
| Visible Output | Yes | Voltage Rating | 24V ac |
| Pushing (MHz/V) | No | Voltage - Supply | 24 V |
| Switching Voltage | 250VAC, 250VDC - Max | Diode Configuration | Yes |
| Current Rating (Max) | 6 | Current - Max/Contact | :6A |
| Voltage - Input (Min) | 250 | Voltage - Supply (Min) | 250V |
| Power - Average Forward | 140 W | Contact Rating (Current) | 6A |
| Current - Input Bias (Max) | 11 (ac), 8.5 (dc)mA | Voltage - Supply (Vcc/Vdd) | :250V |
| Voltage - Rated AC (Phase to Ground/Neutral) | :250V | ||
Mechanical
| Seal | Unsealed | Depth | 6.2mm |
| Width | :6.2mm | Height | 94mm |
| Length | 80mm | Weight | 1.193318 oz |
| Packaging | Bulk | Contact Form | SPDT |
| Height (Max) | :80mm | Mounting Type | DIN Rail |
| Terminal Type | Screw | Mounting Style | DIN Rail |
| Contact Material | Silver Tin Oxide | Length - Overall | 6.2 |
| Termination Style | Screw Terminal | Contact Termination | PCB |
| Contact Layout, Typical | SPDT | ||
Product Info
| Type | PLC Relay | Series | PLC-RSC |
| Features | LED Indicator, PLC Terminal Block | Function | PLC |
| Relay Type | PLC Relay | Manufacturer | PLC-RSC/RSP |
| Industry Aliases | PLC-RSC- 24UC/21 | Base Product Number | PLC-RSC-24UC/21 |
Environmental
| Operate Time | 6ms | Operating Temperature | -25°C ~ 60°C |
Documents & Media
Online Document
PDF Document
PDF Document
PDF Document
Online Document
