点击放大查看
3008180
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | CLIPLINE UK | Other Names | UKN 5 BK |
| Product Category | DIN Rail Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-2 | ||
Electrical
| Current - IEC | 36A | Voltage - IEC | 400V |
| Voltage Rating | 400 V | Current Rating (Max) | 36A |
Mechanical
| Color | 黑色 | Length | 1.713" (43.50mm) |
| Weight | 0.438808 oz | Height (Max) | 2.146" (54.50mm) |
| Housing Color | Black | Mounting Type | DIN Rail |
| Stripping Length | 7mm | Terminal - Width | 6.2mm |
| Termination Rows | 螺钉 | Termination Style | Special, Hybrid |
| Number of Positions | 2 | Material - Insulation | Polyamide (PA), Nylon |
| Wire Gauge or Range - AWG | 10-24 AWG | Wire Gauge or Range - mm2 | 0.2-6mm² |
Product Info
| Type | Bus Bar - Side | Series | UK |
| Number of Levels | 1 | ||
Documents & Media
PDF Document
Similar Parts
1204119
Phoenix Contact
$194.2760
Details
1007222
Phoenix Contact
$68.9792
Details
1201015
Phoenix Contact
$289.5379
Details
0824992
Phoenix Contact
$35.7680
Details
0806602
Phoenix Contact
$104.4480
Details
1201442
Phoenix Contact
$1.2740
Details
0402174
Phoenix Contact
$156.6040
Details
1201141
Phoenix Contact
$19.8601
Details

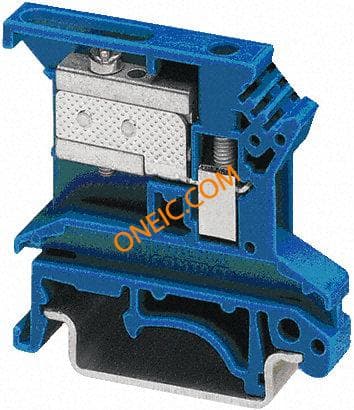

3032428
