Business
| Product | Pluggable Terminal Blocks | Tradename | CLIPLINE ST |
| Standard Pack | 50 | Product Category | Pluggable Terminal Blocks |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Approval Agency | cULus | Material Flammability Rating | UL94 V-0 |
Electrical
| Current - UL | 30A | Voltage - UL | 600V |
| Current - IEC | 32A | Voltage - IEC | 800V |
| Voltage Rating | 800 V | Number of Poles | 2Poles |
| Current Rating (Max) | 32 A | Voltage - Input (Min) | 800V |
Mechanical
| Color | Gray | Depth | 6.2 |
| Width | 6.2 mm | Height | 44 |
| Length | 2.177" (55.30mm) | Weight | 0.279723 oz |
| Wire Gauge | 28 | Termination | Spring |
| Height (Max) | 1.732" (44.00mm) | Housing Color | Gray |
| Mounting Type | DIN Rail | Number of Rows | 2 |
| Housing Material | Polyamide | Length - Overall | 55.8 |
| Primary Material | DINRail | Stripping Length | 10mm |
| Terminal - Width | 6.2mm | Pin Hole Diameter | 6.2mm |
| Termination Style | Plug Receptacles, Push In, Spring | Number of Contacts | 2 |
| Number of Positions | 2 | Material - Insulation | Polyamide (PA), Nylon |
| Wire Gauge or Range - AWG | 10-28 AWG | Wire Gauge or Range - mm2 | 0.08-6mm² |
Product Info
| Type | Spring Cage | Series | ST |
| Number of Levels | 1 | Base Product Number | ST4/1P |
Documents & Media
PDF Document
Similar Parts
1204119
Phoenix Contact
$194.2760
Details
3032224
Phoenix Contact
$150.5112
Details
3040588
Phoenix Contact
$3.8760
Details
0806602
Phoenix Contact
$104.4480
Details
3002885
Phoenix Contact
$4.4200
Details
3030954
Phoenix Contact
$15.0416
Details

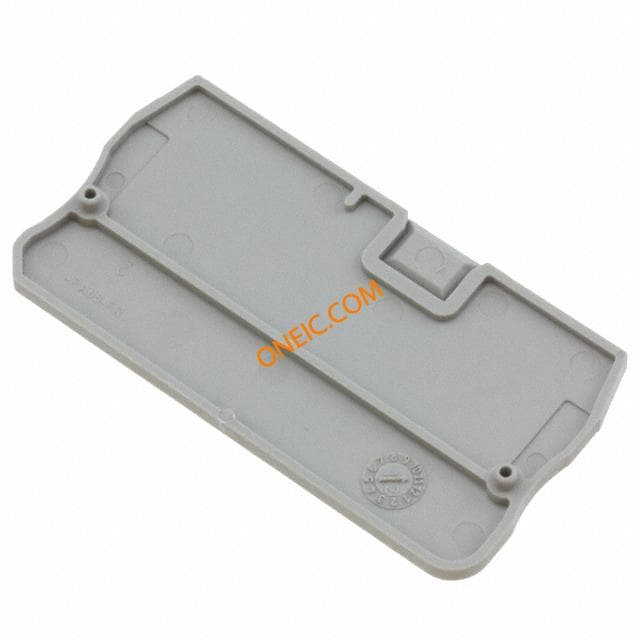

3030420
