Business
| Tradename | CLIPLINE UT | Product Category | DIN Rail Terminal Blocks |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Standards | ATEX Ex |
| Tariff No | 85369010 | Approval Agency | :EN 60079, EN 60241 |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Current - UL | 30A | Voltage - UL | 600V |
| Current - IEC | 32A | Voltage - IEC | 1000V |
| Voltage - Test | 8kV | Voltage Rating | 1000 V |
| Number of Poles | :1 | Voltage - Working | :800V |
| Connector Impedance | rail | Current Rating (Max) | 32A |
| Voltage - Input (Min) | 1000V | ||
Mechanical
| Color | Gray | Depth | 6.2 |
| Pitch | :6.2mm | Width | 6.2 mm |
| Height | 55 mm | Length | 47.7 mm |
| Weight | 0.312175 oz | Wire Gauge | 26 → 10 AWG |
| Termination | Screw | Body Material | polyamide |
| Mounting Type | Straight | Terminal Type | :Screw |
| Connector Type | :Terminal Block, DIN Rail | Contact Finish | :- |
| Mounting Style | DIN Rail | Number of Rows | 2 |
| Contact Material | :- | Housing Material | Polyamide |
| Length - Overall | 46.9 | Package Quantity | 50 |
| Primary Material | DINRail | Stripping Length | 9mm |
| Terminal - Width | 6.2mm | Termination Style | Screw |
| Wire Strip Length | 9mm | Color - Connectors | Grey |
| Number of Contacts | 2 | Number of Positions | 2 |
| Material - Insulation | Polyamide (PA), Nylon | Wire Gauge or Range - AWG | 10-26 AWG |
| Wire Gauge or Range - mm2 | 0.14-6mm² | 1st Connector Mounting Type | :DIN Rail |
Product Info
| Spg | 50 | Type | Universal Terminal Blocks |
| Gender | F | Series | UT |
| Features | Universal | Number of Units | 1 |
| Number of Levels | 1 | Base Product Number | UT4 |
Environmental
| Operating Temperature | +110°C | ||
Documents & Media
PDF Document
Similar Parts
0801733
Phoenix Contact
$70.5228
Details
3047028
Phoenix Contact
$4.0120
Details
1205053
Phoenix Contact
$106.0800
Details

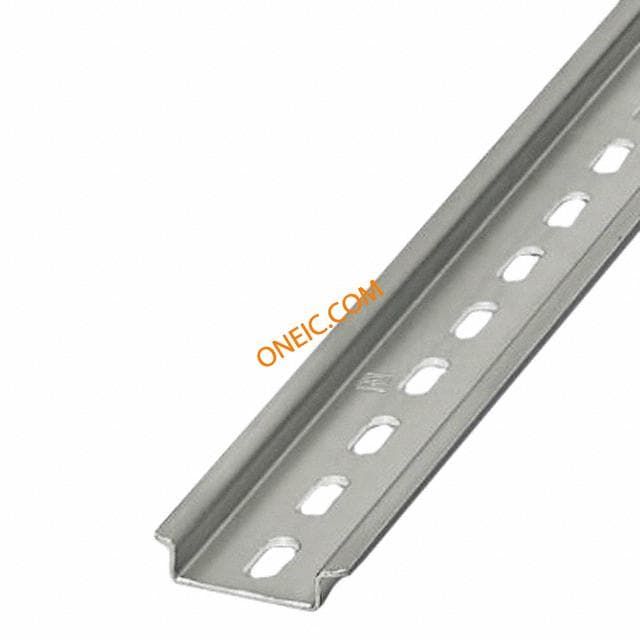

1207640
Phoenix Contact
$66.1062
Details
1201798
Phoenix Contact
$119.9520
Details
3030925
Phoenix Contact
$60.7920
Details

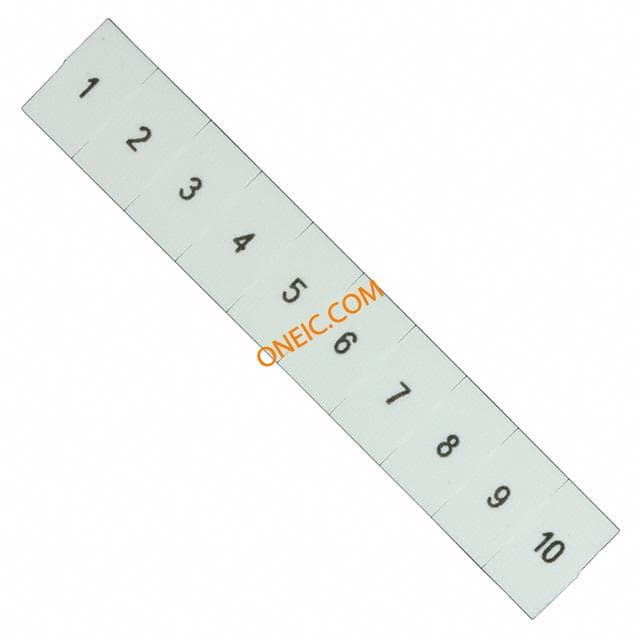

1051016:0001
Phoenix Contact
$1.0780
Details
3047167
Phoenix Contact
$4.6920
Details
0201744
Phoenix Contact
$27.1320
Details
1051016:0011
Phoenix Contact
$16.5240
Details

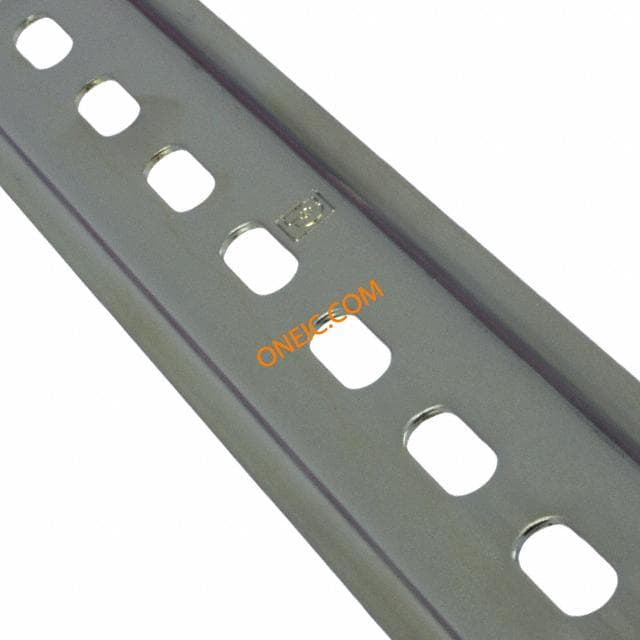

1207653
Phoenix Contact
$62.6280
Details
5060935
Phoenix Contact
$6.5280
Details
3022276
Phoenix Contact
$6.7592
Details

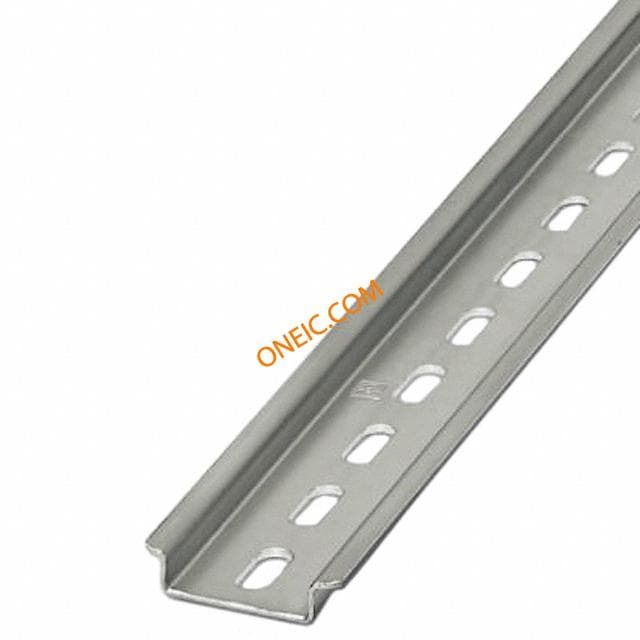

1207666
