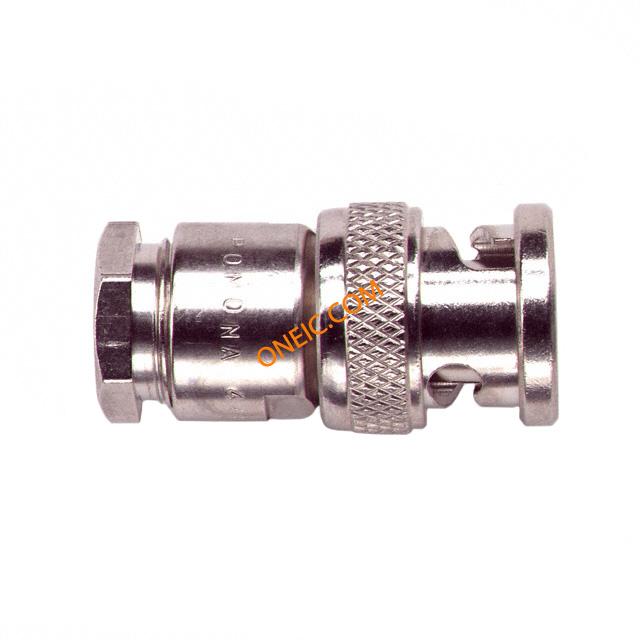

4488
| Manufacturer | |
| Description | RF コネクタ BNC FOR RG58 TYPE Conn BNC PL 50Ohm ST Cable Mount Gold RF Connectors BNC FOR RG58 TYPE CONN BNC PLUG STR 50 OHM SOLDER RF Connectors / Coaxial Connectors BNC FOR RG58 TYPE Connector;50Ohms;RG/U55,55A,55B,58,58C,141,141A,142B,223;BNC;Gold;Male |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Connectors | Part # Aliases | 1918511 |
| Product Category | RF Connectors / Coaxial Connectors | Standard Package | 5 |
| Factory Pack Quantity | 5 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Impedance | 50 Ohm | Voltage Rating | 500V |
| Frequency - Max | 4GHz | ||
Mechanical
| Diameter | 14.5 | Packaging | Bulk |
| Cable Type | RG-58, RG-58A, RG-58C, RG-141, RG-141A, RG-142, RG-142A, RG-142B, RG-223 | Body Finish | Nickel |
| Cable Group | RG-55, 55A, 55B, 58, 58C, 141, 141A, 142B, 223 | Orientation | Straight |
| Body Material | Brass | Housing Color | Silver |
| Mounting Type | Cable Mount | Angle of Throw | Straight |
| Connector Type | Plug, Male Pin | Contact Finish | Gold |
| Fastening Type | Bayonet Lock | Housing Finish | Nickel |
| Plating - Body | Nickel | Connector Style | BNC |
| Contact Material | Brass | Housing Material | Brass |
| Length - Overall | 31.75 | Primary Material | BNC |
| Termination Style | Solder | Mating Orientation | Bayonet |
| Shield Termination | Clamp | Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Insulation Material | Polytetrafluoroethylene |
| Bushing, Grommet Type | SiliconeRubber | Center Contact Plating | Gold |
| Center Contact Material | Brass | ||
Product Info
| Type | BNC | Gender | PL |
| Polarity | Standard | Connection Type | Coaxial Cable |
| RF Family/Standard | BNC | ||
