72956
| Manufacturer | |

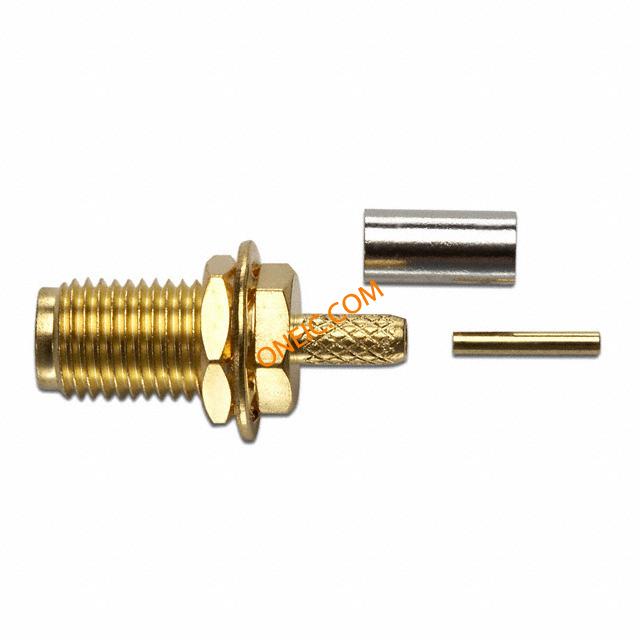

| Description | RF Connectors SMA JACK BULKHEAD RG174 178 188 316 Conn SMA RCP 0Hz to 4GHz 50Ohm Crimp ST Panel Mount Gold CONN SMA JACK STR 50 OHM SOLDER RF Connectors / Coaxial Connectors SMA JACK BULKHEAD RG174 178 188 316 RF/COAXIAL, SMA BHD JACK STR 50 OHM CRIMP SMAJACKBULKHEADCRIMP,RG174,178,188,316 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Connectors | Part # Aliases | 3094212 |
| Product Category | RF Connectors / Coaxial Connectors | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85366910 | ||
Electrical
| Frequency | 0 to 4G | Impedance | 50 Ohm |
| Voltage Rating | 375V | Frequency - Max | 4GHz |
Mechanical
| Depth | 7 | Weight | 0.005 |
| Packaging | Bulk | Cable Type | RG-174, RG-188, RG-316 |
| Body Finish | Gold | Cable Group | RG-174, 178, 188, 316 |
| Orientation | Straight | Termination | Crimp |
| Body Material | Brass | Housing Color | Gold |
| Mounting Type | Panel Mount | Connector Type | Jack, Female Socket |
| Contact Finish | Gold | Fastening Type | Threaded |
| Plating - Body | Gold | Connector Style | SMA |
| Contact Material | Beryllium Copper | Length - Overall | 19 |
| Termination Style | Crimp | Shield Termination | Crimp |
| Contact Termination | Solder | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Insulation Material | Polytetrafluoroethylene | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Supplier Device Package | Bulkhead |
Product Info
| Type | SMA | Gender | RCP |
| Polarity | Standard | Connection Type | Coaxial Cable |
| RF Family/Standard | SMA | ||
Environmental
| Operating Temperature | -65°C ~ 165°C | ||
