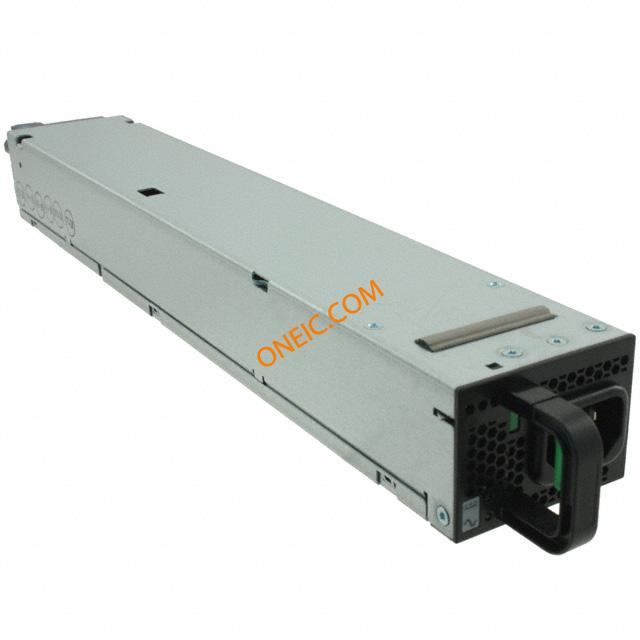

PFE850-12-054NA
| Manufacturer | |
| Description | AC/DC Power Supply Single-OUT 12V 70A 840W FRONT END AC/DC 850W W/ PFC Linear and Switching Power Supplies 90-264VAC 850W 12V 80+CERTIFIED/PLATNUM PowerSupply;AC-DC;12V@70A;90-264VIn;Enclosed;CageMnt;FrountEnd;PFC;PFESeries |
| Category |
商业参数
| 产品 | Switching Supplies | 产品类别 | Linear and Switching Power Supplies |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | No | 认证机构 | EN, IEC |
电气参数
| 输出端 | 12VDC@70A | 频率 | 47 to 64 Hz |
| 操作方式 | PFC | 效率 | 94.4(Typ) % |
| 最大功率 | 840(Typ) W | 输出功率 | 850 W |
| 功率（瓦） | 850W | 额定输出功率 | 850W |
| 额定电压 | 90 to 264 V | 电源调整率 | 1% |
| 负载调整率 | 1% | 输出电流 | 70(Typ) A |
| 输出数量 | 1 | 供电类型 | Switching (Closed Frame) |
| 最大功率（瓦特） | 856.5W | 最大额定电流 | 13(rms) A |
| 最小输入电压 | 3.3V, 5V, 12V | 输出电流/通道 | 70 A |
| 共模瞬态抗扰度（最小） | Commercial | ||
机械参数
| 深度 | 54.5 mm | 宽度 | 54.5 mm |
| 高度 | 40 mm | 长度 | 321.5 mm |
| 重量 | 2.315 lbs | 安装类型 | Rack Mount |
| 安装样式 | Rack | 总长度 | 359.9 mm |
| 面板安装类型 | Enclosed | 主要材料 | AC-DC |
| 尺寸/外形 | 14.17" L x 2.15" W x 1.57" H (360.0mm x 54.5mm x 40.0mm) | ||
产品信息
| 类型 | Regulated | 样式 | Enclosed |
| 系列 | PFE | 产品特性 | Aux.Output |
| 应用领域 | Commercial | 应用 | Commercial |
| 制造商全称 | PFESeries | 配置 | Enclosed |
环境参数
| 工作温度 | 0 to 65 °C | 结工作温度 | 65C |
