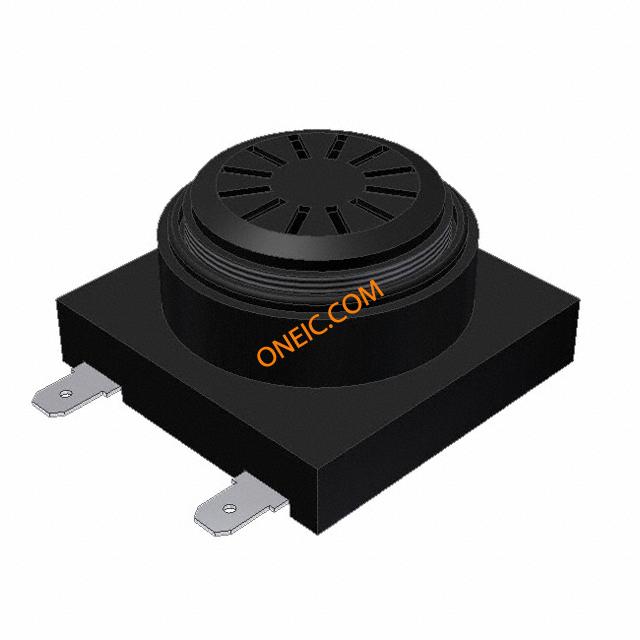

点击放大查看
X-4028-P-C32-R
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Indicators | Product Category | Audio Indicators & Alerts |
| Standard Package | Bulk | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Frequency | 2800 Hz +/- 500 Hz | Input Type | DC |
| Voltage Range | 3 ~ 32V | Operating Mode | Continuous |
| Voltage Rating | 32 Vdc | Frequency - Max | 3300 Hz |
| Frequency Range | 2300 to 3300 Hz | Output Function | Continuous |
| Current - Output | 22mA | Driver Circuitry | Indicator, Internally Driven |
| Current Rating (Max) | 22 mA | Sound Pressure Level (SPL) | 105 dBA |
Mechanical
| Depth | 40 mm | Width | 40 mm |
| Height | 48 mm | Length | 40 mm |
| Packaging | Bulk | Termination | Solder Lug |
| Mounting Type | Panel Mount | Length - Overall | 23 mm |
| Size / Dimension | 40 mm L x 40 mm W x 23 mm H | ||
Product Info
| Tone | Continuous | Type | Indicator |
| Washable | No | Technology | Piezo |
Environmental
| Operating Temperature | -30°C ~ 80°C | ||
Documents & Media
Sourcing & traceability
- Datasheet
- X-4028-P-C32-R.igs
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
