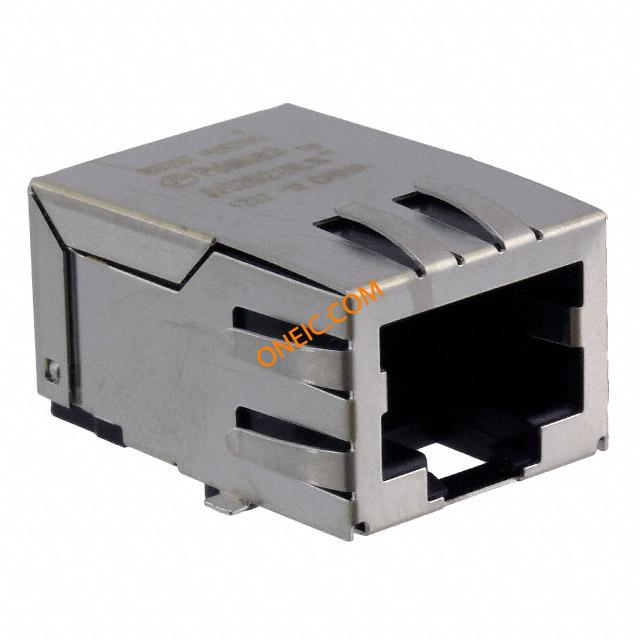

JV026I21NL
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 84 Days | Subcategory | Connector Telephone and Telecom |
| Product Category | Modular Connectors / Ethernet Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 45 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Mechanical
| Depth | 23.75 mm | Pitch | 2.03 mm |
| Height | 12.88 mm | LED Color | Does Not Contain LED |
| Packaging | Tray | Shielding | Shielded, EMI Finger |
| Orientation | 90° Angle (Right) | Termination | Solder |
| Mounting Type | Surface Mount | Tab Direction | Down |
| Connector Type | RJ45 | Contact Finish | Gold |
| Mounting Style | Surface Mount | Number of Rows | 1 |
| Shield Material | Brass | Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic | Length - Overall | 19.33 mm |
| Termination Style | SMD | Height Above Board | 0.507" (12.88mm) |
| Number of Contacts | 8 | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Type | RJ-45 Integrated Magnetics | Gender | F |
| Features | Board Guide | USOC Codes | RJ45 |
| Applications | 10/100 Base-TX | Number of Ports | 1 |
| RF Family/Standard | JV | Number of Cores per Jack | 5 |
| Number of Positions Loaded | 8 | For Use With/Related Products | JV026I21 |
Environmental
| Operating Temperature | 0°C ~ 70°C | ||
