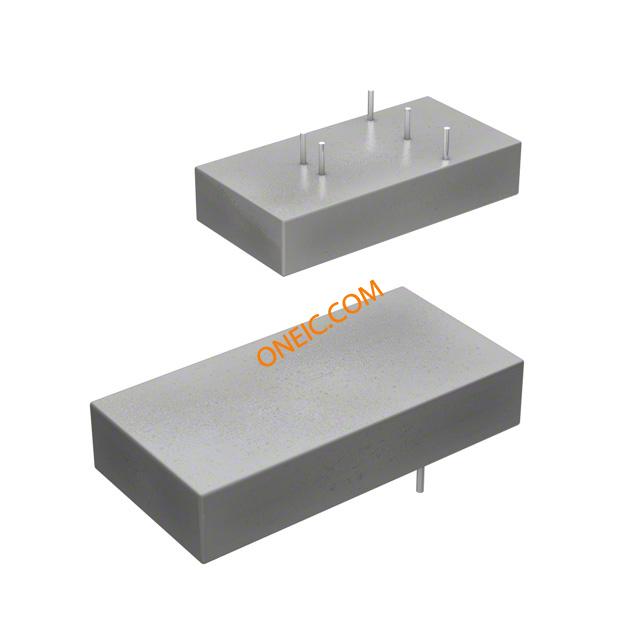

RP15-4815SFW
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 9 | Product | Isolated |
| Tradename | Powerline | Unit Pack | 9 |
| Standard Package | 9 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Noise | 75mV 峰峰值 | Efficiency | 86% |
| Power - Max | 15W | Output Power | 15 W |
| Power (Watts) | 86% | Power - Rated | 15W |
| Voltage Rating | 48V dc | Voltage - Input | 48 V |
| Current - Output | 1A | Voltage - Supply | 18 → 75 V 直流 |
| Number of Outputs | 1 | Power (Watts) - Max | 15W |
| Voltage - Isolation | 1.6kV (1600V) | Current Rating (Max) | 1A |
| Voltage - Input (Min) | 15V | Voltage Regulation - Load | ±0.2% |
Mechanical
| Depth | 10.2mm | Width | 50.8mm |
| Height | 10.2 mm | Length | 25.4mm |
| Weight | 27g | Packaging | Tube |
| Mounting Type | Through Hole | Package / Case | 6-DIP Module |
| Size / Dimension | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | ||
Product Info
| Type | Isolated Module | Series | RP15 |
| Features | OCP, OVP, SCP | Function | Y |
Environmental
| Operational Life | 2350 x 10³h | Operating Temperature | -40°C ~ 75°C |
| Maximum Temperature Limit | +75°C | ||
Documents & Media
PDF Document
Sourcing & traceability
- Datasheet
- RP15-S_DFW.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
