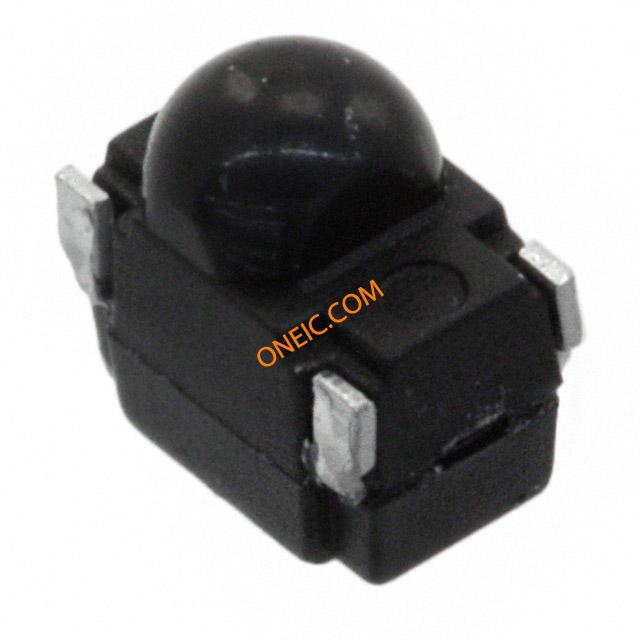

RPM-012PBT97
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Phototransistors | Other Names | 846-1024-1 |
| Standard Package | 3,500 | ||
Compliance
| RoHS | RoHS Compliant | Automotive | NO |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Fall Time | 10 us | Wavelength | 800 nm |
| Power - Max | 75mW | Sensitivity | 800 nm |
| Sensing Range | 700 nm | Viewing Angle | 24° |
| Rise Time (Typ) | 10 us | Voltage - Supply | 32 V |
| Current Rating (Max) | 0.5 µA | Vce Saturation (Max) | 0.4 V |
| Rise / Fall Time (Typ) | 10000 ns | Power Dissipation (Max) | 75 mW |
| Vce(on) (Max) @ Vge, Ic | 32 V | Current - Dark (Id) (Max) | 500µA |
| Current - Collector (Ic) (Max) | 20mA | ||
Mechanical
| Packaging | Reel | Orientation | Side View |
| Mounting Type | Surface Mount | Package / Case | 3 mm x 2 mm x 3 mm |
Product Info
| Type | PHOTOTRANS | Other Specifications | SMD |
Environmental
| Operating Temperature | + 85 C | Maximum Temperature Limit | 85 °C |
Documents & Media
PDF Document
Sourcing & traceability
- Datasheet
- rpm-012pb.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
