RSB12JS2T2R
| Manufacturer | |
| Description | Diode Zener Dual 12V 20% 150mW 6-Pin EMD T/R TVS DIODE 9VWM EMD6 Zener Diode RSB12JS2T2R Dual, SC-75A 6-Pin TVS Diode Arrays TVS ARRAY TVS,RSB12JS2T2R ROHM ESD 保护二极管 Z-DIODE 0,15W 12V EMD6 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | RSB12JS2T2RTR | Product Category | TVS Diode Arrays |
| Standard Package | Tape & Reel | Factory Pack Quantity | 8000 |
Compliance
| RoHS | Lead free / RoHS Compliant | Automotive | NO |
| ESD Protection | 是 | Leadfree Defin | RoHS-conform |
Electrical
| Channels | 4 Channels | Capacitance | 1 pF |
| Current - Test | 5mA | Voltage - Supply | 12 V |
| Number of Channels | 4 Channel | Number of Elements | 2 |
| Power - Peak Pulse | 150mW | Capacitance @ Vr, F | 1 pF |
| Voltage - Breakdown | 9.6V | Voltage - Off State | 9V |
| Current Rating (Max) | 0.1µA | Impedance (Max) (Zzt) | 5 mA |
| Power Line Protection | No | Bidirectional Channels | 2 |
| Power Dissipation (Max) | 150 mW | Power (Watts) - Per Port | 0.15 W |
| Current - Reverse Leakage @ Vr | 0.1 uA | ||

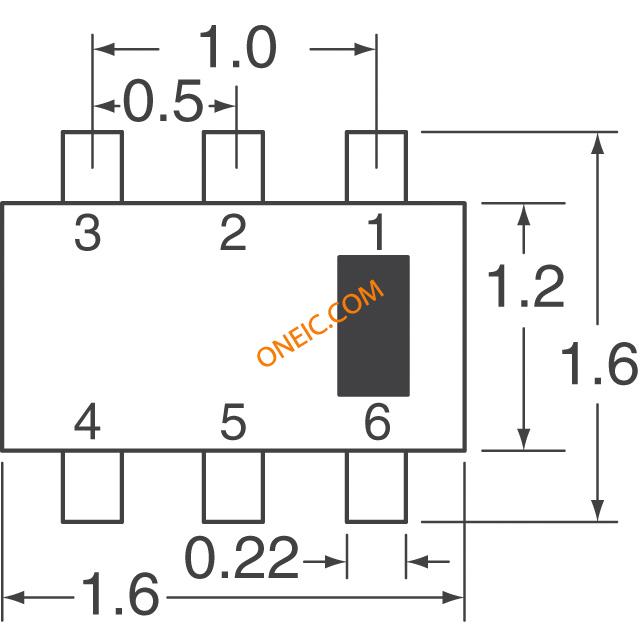

Mechanical
| Width | 1.2mm | Height | 0.5mm |
| Length | 1.6mm | Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | 6 | Package / Case | 6EMD |
| Package Quantity | SC75A | Size / Dimension | 1.2 mm W x 1.6 mm L x 0.4 mm H |
| Termination Style | SMD/SMT | Supplier Device Package | EMD6 |
Product Info
| Type | Zener | Series | RSB12JS2 |
| Function | Y | Polarity | Bidirectional |
| Diode Type | 隔离式 | Applications | General Purpose |
| Manufacturer | ROHM Semiconductor | Configuration | Dual |
Environmental
| Operating Temperature | -55 to 150 °C | ||
