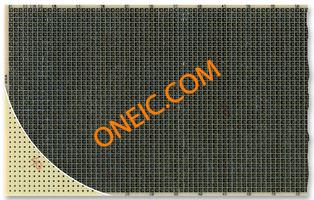

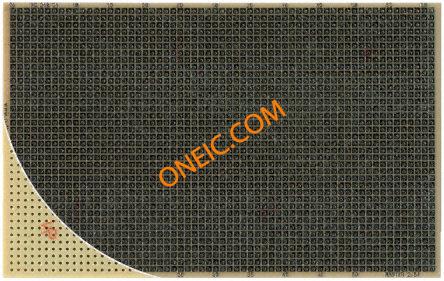

RE210-S2
| Category |
对参数有疑问？问 AI 助手
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85340019 |
Mechanical

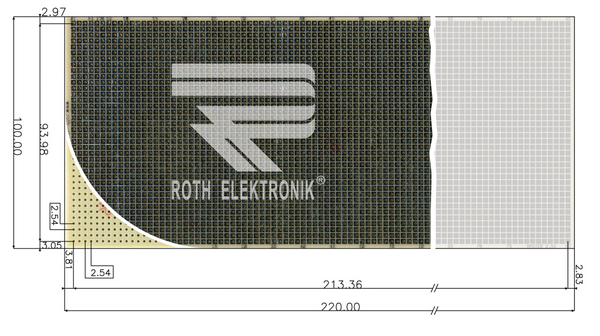

| Size | :100 x 220 mm | Pitch | 2.54 x 2.54mm |
| Width | 100mm | Length | 220mm |
| Weight | 0.05 | Material | :CEM3 |
| Footprint | :- | Thickness | 1.5mm |
| Height (Max) | :100mm | Hole Diameter | 1mm |
| Board Thickness | :Prototype Board | Material - Body | :Composite Epoxy Material CEM 3 |
| Package Quantity | 25 | Primary Material | CEM3 |
| Size / Dimension | 220 x 100 x 1.5mm | Number of Positions | 1 |
| Plating - Thickness | 35µm | Pad Layout Dimension | 38 x 85 |
| Contact Finish Thickness | :HAL 5 - 6 µm (hole 2 - 3 µm) | Diameter - Inside, Non-Expanded | :2.2mm |
Product Info
| Spg | 25 | Active Area | :2.20 mm Ø |
| Copper Ports | 35µm | Number of Units | 1 |
| Module/Board Type | universal | Base Product Number | single sided, prototyping |
| Matrix (Columns x Rows) | :38 x 85 | Number of Positions Loaded | :1 |
