点击放大查看

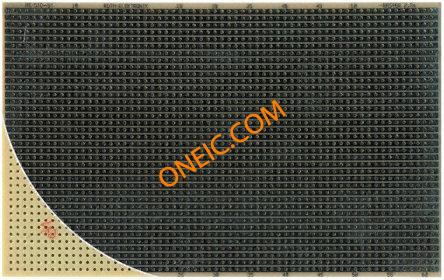

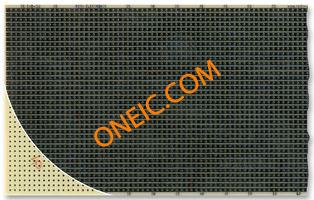

RE510-S2
| Category |
对参数有疑问？问 AI 助手
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85340019 |
Mechanical

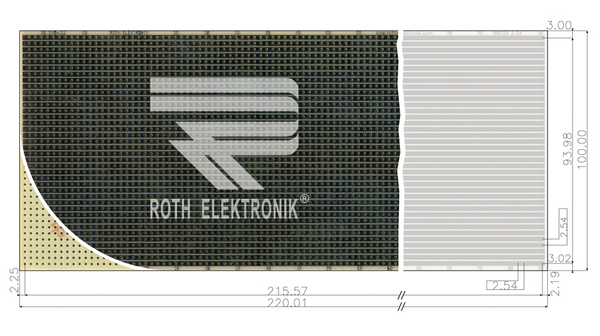

| Size | :100 x 220 mm | Pitch | 2.54 x 2.54mm |
| Width | 100mm | Length | 220mm |
| Weight | 0.052 | Material | :CEM3 |
| Footprint | :- | Thickness | 1.5mm |
| Height (Max) | :100mm | Pitch - Post | :2.54mm |
| Hole Diameter | 1mm | Board Thickness | :Prototype Board |
| Material - Body | :Composite Epoxy Material CEM 3 | Package Quantity | 25 |
| Primary Material | CEM3 | Size / Dimension | 220 x 100 x 1.5mm |
| Number of Positions | 1 | Plating - Thickness | 35µm |
| Contact Finish Thickness | :HAL 5 - 6 µm (hole 2 - 3 µm) | ||
Product Info
| Spg | 25 | Copper Ports | 35µm |
| Number of Units | 1 | Module/Board Type | universal |
| Base Product Number | single sided, prototyping | Matrix (Columns x Rows) | :38 x 84 |
| Number of Positions Loaded | :1 | ||
Documents & Media
PDF Document
PDF Document
Similar Parts

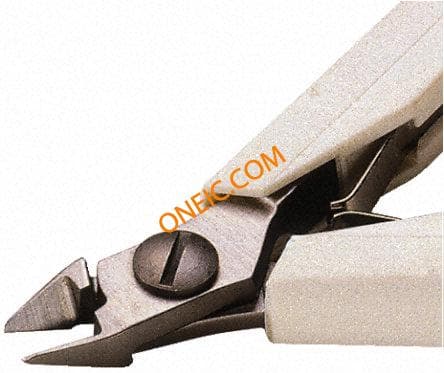

7190
