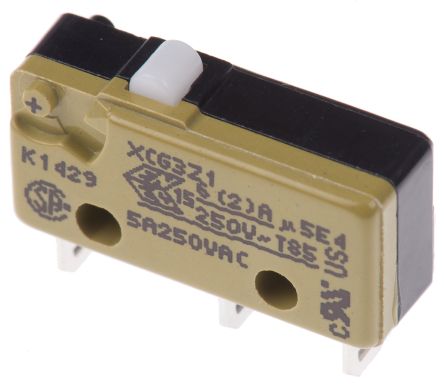

XCG3-Z1
| Category |
对参数有疑问？问 AI 助手
Electrical
| Switching Voltage | ON-(ON) | Current Rating (Max) | 5 @ 250 V 交流 A |
| Contact Rating (Current) | 5 A @ 250 V ac | AC contacts rating (at resistance load) | 5 A / 250 VAC |
Mechanical
| Weight | 1.84 g | Lead Style | for soldering |
| Size - Body | 19.9 x 6.4 x 9.5mm | Actuator Type | Plunger |
| Holding Force | 0.3N | Release Force | 0.3N |
| Terminal Type | Solder | Connector Type | 焊接 |
| Operating Force | 1.69 N | Contact Material | Gold; Silver |
| Size / Dimension | see | Pitch - Connector | 6.65mm |
| Number of Positions | 1-position | Torque - Rated (oz-in / mNm) | 1.7N |
Product Info
| Switch Type | microswitch | Number of Units | 1 |
| Switch Features | without lever | Contacts Configuration | SPDT |
Environmental
| Mechanical Life | 50000000cycles | Ingress Protection | IP40 |
| Operating Temperature | -40...85°C | ||
