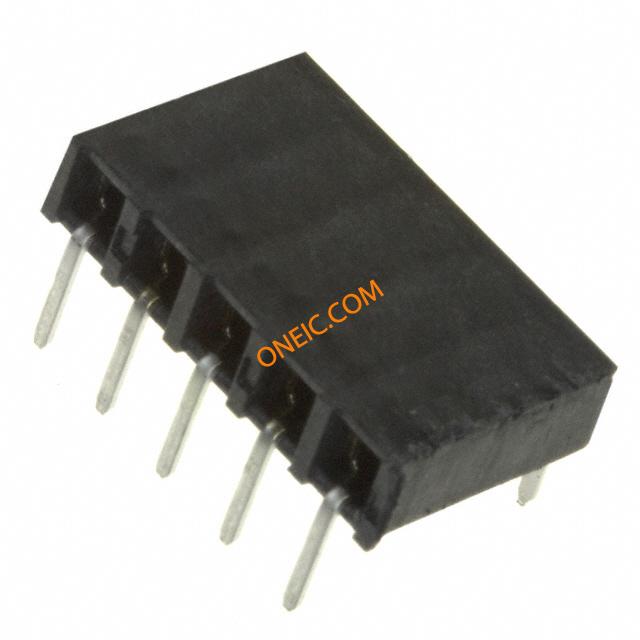

BCS-105-L-S-HE

Manufacturer	Samtec, Inc.
Description	Conn Socket Strip SKT 5 POS 2.54mm Solder RA Thru-Hole Tube CONN RCPT 5POS .100" SNGL HORZ SOCKET, 2.54MM, HORIZONTAL, 1X5WAY
Category	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

交货时间	30 Days	其他名称	SAM1009-05
子类别	Connector Headers and PCB Receptacles	标准包装数量	Bulk

合规参数

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
欧盟RoHS	Compliant	海关税号	85369010

电气参数

接触电阻	10	最大额定电流	5.9
最小输入电压	450VAC

机械参数

颜色	Black	深度	8.13
间距	2.54 mm	高度	3.18
重量	0.002	包装方式	Tube
端接方式	Solder	引脚间距	:2.54mm
外壳颜色	Black	安装类型	Through Hole
连接器类型	Receptacle	接触镀层	Gold Over Nickel
排数	1	触头材料	Phosphor Bronze
壳体材料	Liquid Crystal Polymer	总长度	12.7
板面高度	0.125" (3.17mm)	触点数	5
接触件端接	:Solder	位数	5
接触镀层厚度	10µin (0.25µm)

产品信息

类型	Socket Strip	连接器性别	SKT
系列	:-	加载位置数	All

Documents & Media

PDF Document

bcs.pdf

PDF Document

481450.pdf
