点击放大查看

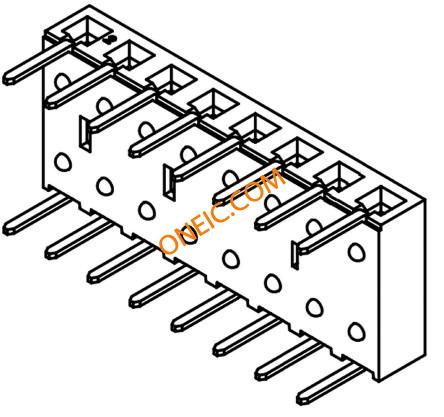

BCS-108-L-S-HE
| Manufacturer | |
| Description | Conn Socket Strip SKT 8 POS 2.54mm Solder RA Thru-Hole Tube CONN RCPT 8POS .100" SNGL HORZ Samtec BCS Series 2.54mm 8 Way 1 Row Right Angle PCB Socket Through Hole Board to Board RECEPTACLE, 2.54MM, HORZ, 8WAY Samtec BCS 系列 8路 直角 2.54mm节距 通孔 印刷电路板插座, 板对板 |
| Category |
商业参数
| 交货时间 | 30 Days | 其他名称 | SAM1009-08 |
| 子类别 | Connector Headers and PCB Receptacles | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 450 V ac | 接触电阻 | 10 |
| 最大额定电流 | 5.9A | 最小输入电压 | 450VAC |
机械参数
| 颜色 | Black | 深度 | 8.13 |
| 间距 | 2.54 mm | 宽度 | :7.87mm |
| 高度 | 3.18 | 重量 | 0.001 |
| 包装方式 | Tube | 端接方式 | Solder |
| 引脚间距 | :2.54mm | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Receptacle |
| 接触镀层 | Gold Over Nickel | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Liquid Crystal Polymer |
| 总长度 | 20.32 | 连接器颜色 | :Black |
| 板面高度 | 0.125" (3.17mm) | 触点数 | 8 |
| 接触件端接 | :Through Hole Right Angle | 位数 | 8 |
| 接触镀层厚度 | 10µin (0.25µm) | ||
产品信息
| 类型 | Socket Strip | 连接器性别 | SKT |
| 系列 | BCS | 加载位置数 | All |
环境参数
| 工作温度 | :125°C | ||
