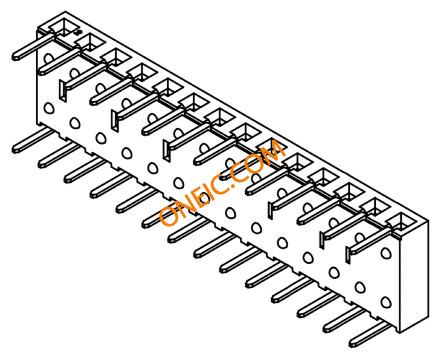

BCS-114-L-S-HE

点击放大查看

BCS-114-L-S-HE

Manufacturer
Samtec, Inc.
Description
Conn Socket Strip SKT 14 POS 2.54mm Solder RA Thru-Hole Tube CONN RCPT 14POS .100" SNGL HORZ Samtec BCS Series 2.54mm 14 Way 1 Row Right Angle PCB Socket Through Hole Board to Board
Category
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

其他名称SAM1009-14标准包装数量Bulk

合规参数

RoHSLead free / RoHS Compliant

电气参数

额定电压450 V ac最大额定电流5.9A

机械参数

颜色Black间距2.54 mm
包装方式Tube端接方式Solder
安装类型Through Hole, Right Angle连接器类型Receptacle
接触镀层Gold Over Nickel排数1
触头材料Phosphor Bronze板面高度0.125" (3.17mm)
触点数14位数14
接触镀层厚度10µin (0.25µm)

产品信息

类型Socket Strip连接器性别SKT
系列BCS加载位置数All

Documents & Media

PDF Document
bcs.pdf
PDF Document
81213.pdf
