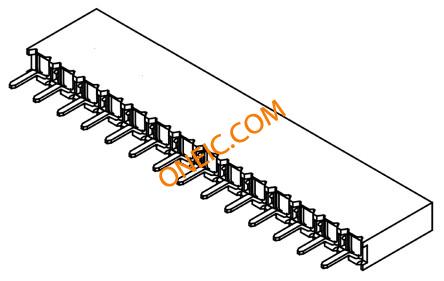

BCS-114-L-S-TE

点击放大查看

BCS-114-L-S-TE

Manufacturer
Samtec, Inc.
Description
Conn Socket Strip SKT 14 POS 2.54mm Solder ST Thru-Hole Tube CONN RCPT 14POS .100" SNGL VERT Samtec BCS Series 2.54mm 14 Way 1 Row Straight PCB Socket Through Hole Board to Board RECEPTACLE, 2.54MM, VERT, 14WAY Samtec BCS 系列 14路 直 2.54mm节距 通孔 印刷电路板插座, 板对板
Category
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

其他名称SAM1011-14标准包装数量Bulk

合规参数

RoHSLead free / RoHS CompliantSVHC:No SVHC (20-Jun-2013)
欧盟RoHSCompliant海关税号85369010

电气参数

额定电压475 V ac接触电阻10 mohm
最大额定电流3 A最小输入电压475VAC
最小供电电压475VAC

机械参数

颜色Black深度2.54 mm
间距0.100" (2.54mm)宽度:5.08mm
高度7.37 mm重量0.001
包装方式Tube端接方式Solder
引脚间距:2.54mm外壳颜色Black
安装类型Through Hole连接器类型Receptacle
接触镀层Gold Over Nickel安装样式Through Hole
排数1触头材料Phosphor Bronze
壳体材料Liquid Crystal Polymer总长度35.56 mm
连接器颜色:Black板面高度0.290" (7.37mm)
触点数14接触件端接:Through Hole Vertical
位数14接触镀层厚度10µin (0.25µm)

产品信息

类型Socket Strip连接器性别SKT
系列BCS已删除Compliant
加载位置数All

环境参数

工作温度-55C to 125C
