点击放大查看

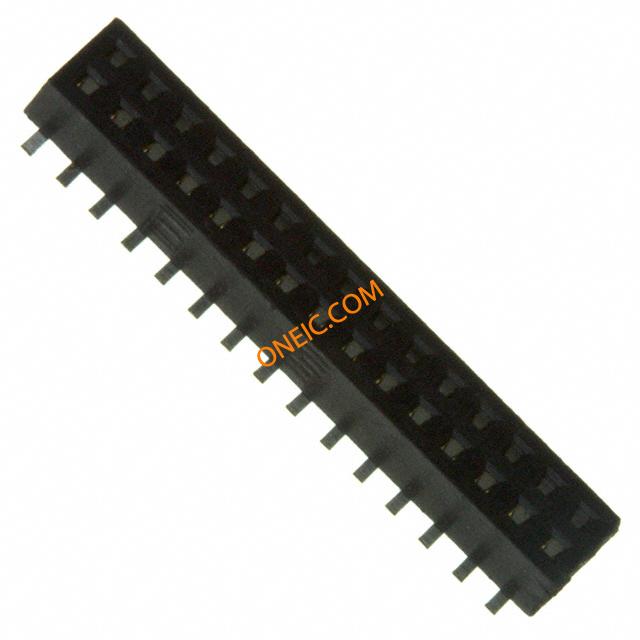

CLP-115-02-F-D
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | SAM1153-15 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85366930 |
Electrical
| Contact Resistance | 10 mohm | Current Rating (Max) | 1.75 A |
Mechanical
| Color | Black | Depth | 3.05 mm |
| Pitch | 1.27 mm | Height | 2.28 mm |
| Weight | 0.0009 | Packaging | Tube |
| Row Spacing | 0.050" (1.27mm) | Termination | Solder |
| Pitch - Post | :1.27mm | Housing Color | Black |
| Mounting Type | Surface Mount | Connector Type | Receptacle |
| Contact Finish | Gold Over Nickel | Mounting Style | Surface Mount |
| Number of Rows | 2 | Contact Material | Phosphor Bronze |
| Housing Material | Liquid Crystal Polymer | Length - Overall | 19.48 mm |
| Height Above Board | 0.090" (2.28mm) | Number of Contacts | 30 |
| Contact Termination | :Surface Mount Vertical | Number of Positions | 30 |
| Contact Finish Thickness | Flash | ||
Product Info
| Type | Socket Strip | Gender | SKT |
| Series | :CLP | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -55C to 125C | ||
