点击放大查看

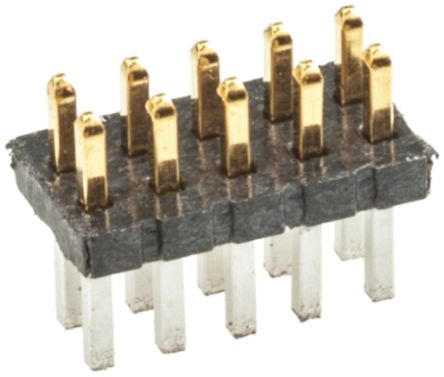

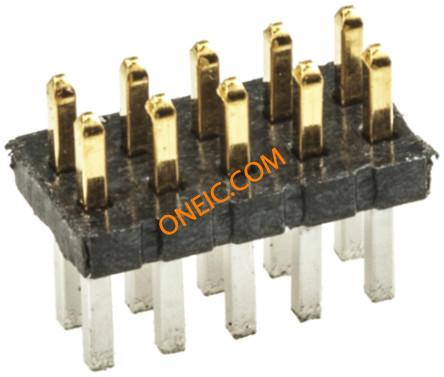

FTS-105-03-L-D
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 10 POS 1.27mm Solder ST Thru-Hole Tube CONN HEADER 10POS DUAL .05" T/H Header 1.27mm through hole 10way HEADER, 1.27MM, THRU HOLE, 10WAY Samtec FTS 系列 1.27mm节距 10路 (2排) 直 引脚管座, 焊接端接, 1.75A , 表面安装 |
| Category |
商业参数
| 其他名称 | SAM1158-05 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 最大额定电流 | 1.75A | ||
机械参数
| 颜色 | Black | 深度 | 3.42 mm |
| 间距 | 1.27 mm | 高度 | 2.51 mm |
| 重量 | 0.001 | 包装方式 | Tube |
| 排间距 | 0.050" (1.27mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚间距 | :1.27mm |
| 柱间距 | :1.27mm | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Gold Over Nickel | 安装样式 | Through Hole |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Liquid Crystal Polymer | 总长度 | 6.35 mm |
| 连接器颜色 | :Black | 触点数 | 10 |
| 接触件端接 | :Solder | 位数 | 10 |
| 接触长度 - 配合 | 0.065" (1.65mm) | 接触镀层厚度 | 10µin (0.25µm) |
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | FTS | 加载位置数 | All |
环境参数
| 工作温度 | -55C to 125C | ||
