点击放大查看

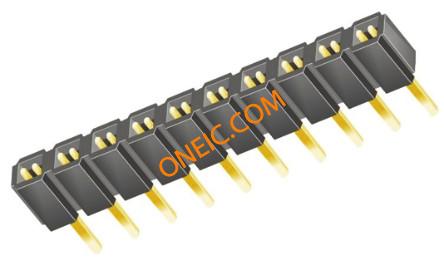

SLW-110-01-G-S

Manufacturer	Samtec, Inc.
Description	Conn Socket Strip SKT 10 POS 2.54mm Solder ST Thru-Hole Conn Socket Strip SKT 10 POS 2.54mm Solder ST Thru-Hole Bulk CONN RCPT .100" 10POS SNGL GOLD Receptacle 2.54mm low profile 10 way RECEPTACLE, 2.54MM, SINGLE, 10WAY Samtec SLW 系列 10路直 2.54mm节距通孔印刷电路板插座, 板对板
Category	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

其他名称

SAM1089-10

标准包装数量

Bulk

合规参数

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
欧盟RoHS	Compliant	海关税号	85369010

电气参数

额定电压	550 V ac	接触电阻	:10mohm
最大额定电流	7.1A	最小输入电压	550VAC

机械参数

颜色	Black	深度	2.54
间距	0.100" (2.54mm)	高度	4.57
重量	0.001	包装方式	Bulk
端接方式	Solder	引脚间距	:2.54mm
外壳颜色	Black	安装类型	Through Hole
连接器类型	Receptacle	接触镀层	Gold Over Nickel
排数	1	触头材料	Phosphor Bronze
壳体材料	Polyester	总长度	25.4
连接器颜色	:Black	板面高度	0.180" (4.57mm)
触点数	10	接触件端接	:Through Hole Vertical
位数	10	接触镀层厚度	20µin (0.51µm)
堆叠高度（配合）	0.240" (6.09mm)

产品信息

类型	Socket Strip	连接器性别	SKT
系列	SLW	加载位置数	All

环境参数

工作温度

:125°C

Documents & Media

PDF Document

SLW, CES Series Spec Sheet

PDF Document

81851.pdf
