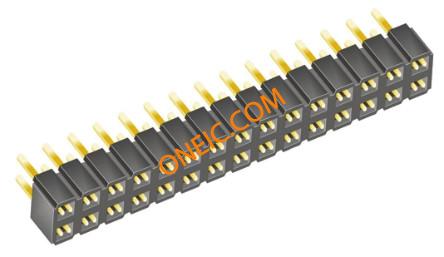

SLW-115-01-G-D
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | SAM1088-15 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Voltage Rating | 550 V ac | Contact Resistance | :10mohm |
| Current Rating (Max) | 7.1A | Voltage - Input (Min) | 550VAC |
Mechanical
| Color | Black | Depth | 4.95 |
| Pitch | 2.54 mm | Height | 4.57 |
| Weight | 0.001 | Packaging | Bulk |
| Row Spacing | 0.100" (2.54mm) | Termination | Solder |
| Lead Spacing | :2.54mm | Pitch - Post | :2.54mm |
| Housing Color | Black | Mounting Type | Through Hole |
| Connector Type | Receptacle | Contact Finish | Gold Over Nickel |
| Number of Rows | 2 | Contact Material | Phosphor Bronze |
| Housing Material | Polyester | Length - Overall | 38.1 |
| Color - Connectors | :Black | Height Above Board | 0.180" (4.57mm) |
| Number of Contacts | 30 | Contact Termination | :Through Hole Vertical |
| Number of Positions | 30 | Contact Finish Thickness | 20µin (0.51µm) |
| Height Stacking (Mating) | 0.240" (6.09mm) | ||
Product Info
| Type | Socket Strip | Gender | SKT |
| Series | SLW | Number of Positions Loaded | All |
Environmental
| Operating Temperature | :125°C | ||
