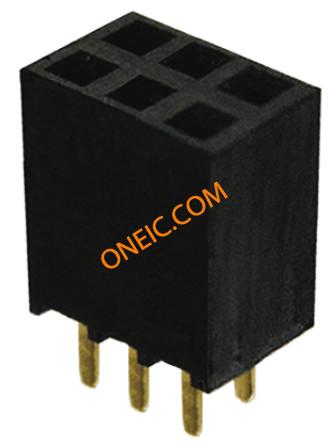

点击放大查看
SSW-103-01-G-D
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | SAM1208-03 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Voltage Rating | 550 V ac | Contact Resistance | 10 mohm |
| Current Rating (Max) | 6.9A | Voltage - Input (Min) | 550VAC |
| Voltage - Supply (Min) | 550VAC | ||
Mechanical
| Color | Black | Depth | 4.95 mm |
| Pitch | 2.54 mm | Height | 8.51 mm |
| Weight | 0.001 | Packaging | Bulk |
| Row Spacing | 0.100" (2.54mm) | Termination | Solder |
| Contact Type | Female Socket | Lead Spacing | :2.54mm |
| Pitch - Post | :2.54mm | Housing Color | Black |
| Mounting Type | Through Hole | Connector Type | Receptacle |
| Contact Finish | Gold Over Nickel | Mounting Style | Through Hole |
| Number of Rows | 2 | Contact Material | Phosphor Bronze |
| Housing Material | Liquid Crystal Polymer | Length - Overall | 8.13 mm |
| Color - Connectors | :Black | Number of Contacts | 6 |
| Contact Termination | :Through Hole Vertical | Number of Positions | 6 |
| Contact Finish Thickness | 20µin (0.51µm) | ||
Product Info
| Type | Socket Strip | Gender | SKT |
| Series | SSW | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -55C to 125C | ||
Documents & Media
PDF Document
PDF Document
