点击放大查看

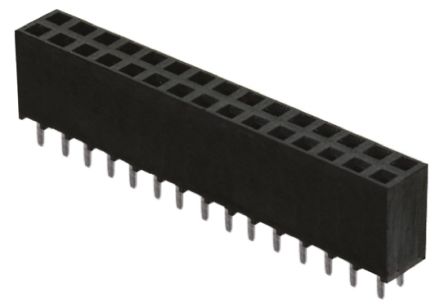

SSW-115-01-T-D
| Manufacturer | |
| Description | Conn Socket Strip SKT 30 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 30POS DUAL TIN Samtec SSW Series 2.54mm 30 Way 2 Row Straight PCB Socket Through Hole Board to Board SOCKET, 2.54MM, 2X15WAY Samtec SSW 系列 2行 30路 直 2.54mm节距 通孔 印刷电路板插座, 板对板 |
| Category |
商业参数
| 其他名称 | SAM1212-15 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 550 V ac | 接触电阻 | 10 mohm |
| 最大额定电流 | 6.9A | 最小输入电压 | 550VAC |
| 最小供电电压 | 550VAC | ||
机械参数
| 颜色 | Black | 深度 | 4.95 mm |
| 间距 | 2.54 mm | 高度 | 8.51 mm |
| 重量 | 0.003 | 包装方式 | Bulk |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Female Socket | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Receptacle |
| 接触镀层 | Tin Over Nickel | 安装样式 | Through Hole |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Liquid Crystal Polymer | 总长度 | 38.61 mm |
| 触点数 | 30 | 接触件端接 | :Through Hole Vertical |
| 位数 | 30 | ||
产品信息
| 类型 | Socket Strip | 连接器性别 | SKT |
| 系列 | SSW | 加载位置数 | All |
环境参数
| 工作温度 | -55C to 105C | ||
