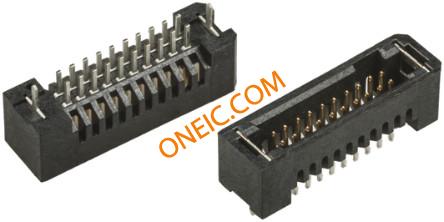

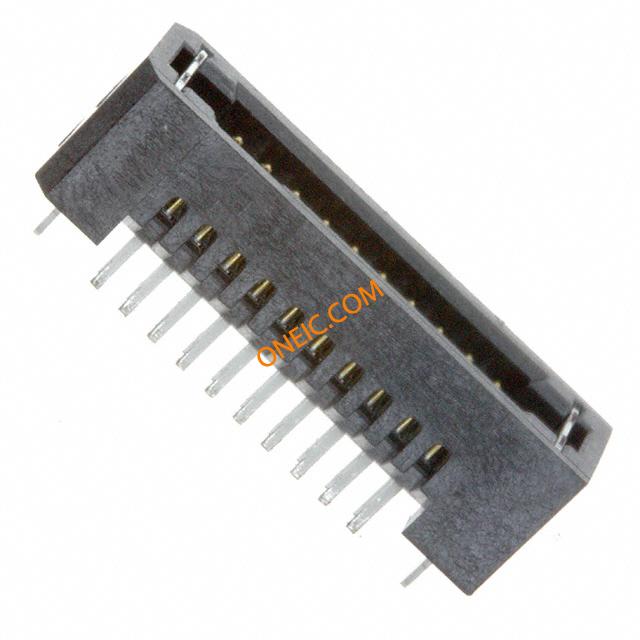

TFM-110-01-S-D-WT
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Voltage Rating | 350 V ac | Current Rating (Max) | 5A |
| Voltage - Input (Min) | 350VAC | ||
Mechanical
| Color | Black | Depth | 5.72 |
| Pitch | 1.27 mm | Height | 5.59 |
| Weight | 0.001 | Packaging | Tube |
| Row Spacing | 0.050" (1.27mm) | Termination | Solder |
| Contact Type | Male Pin | Lead Spacing | :1.27mm |
| Pitch - Post | :1.27mm | Housing Color | Black |
| Mounting Type | Through Hole | Connector Type | Receptacle |
| Contact Finish | Gold Over Nickel | Number of Rows | 2 |
| Contact Material | Phosphor Bronze | Housing Material | Liquid Crystal Polymer |
| Length - Overall | 15.88 | Color - Connectors | :Black |
| Number of Contacts | 20 | Contact Termination | :Through Hole Vertical |
| Number of Positions | 20 | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | TFM | Features | Solder Retention |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | :125°C | ||
