点击放大查看

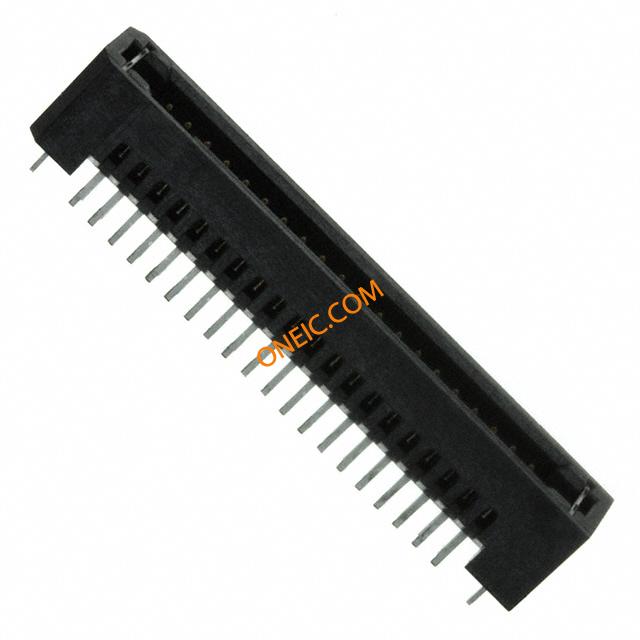

TFM-120-01-S-D-WT
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Voltage Rating | 350 V ac | Current Rating (Max) | 5A |
Mechanical
| Color | Black | Pitch | 1.27 mm |
| Weight | 0.001 | Packaging | Tube |
| Row Spacing | 0.050" (1.27mm) | Termination | Solder |
| Contact Type | Male Pin | Lead Spacing | :1.27mm |
| Pitch - Post | :1.27mm | Mounting Type | Through Hole |
| Connector Type | Receptacle | Contact Finish | Gold Over Nickel |
| Number of Rows | 2 | Contact Material | Phosphor Bronze |
| Color - Connectors | :Black | Number of Contacts | 40 |
| Contact Termination | :Through Hole Vertical | Number of Positions | 40 |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | TFM | Features | Solder Retention |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | :125°C | ||
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
