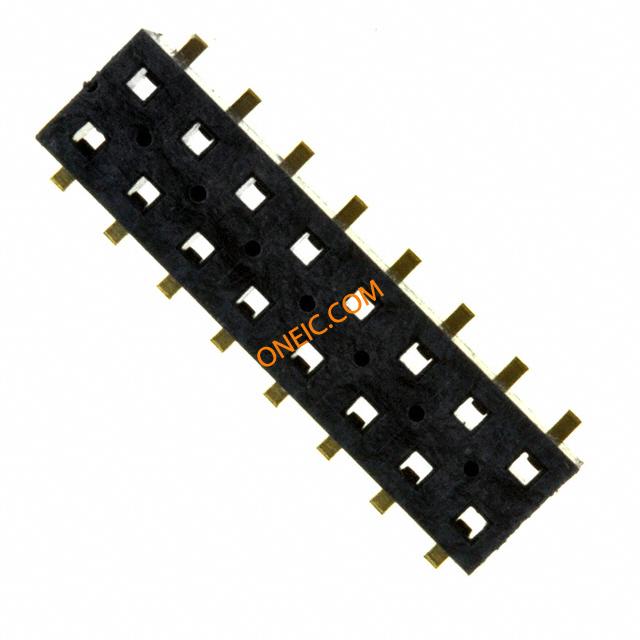

点击放大查看
TLE-108-01-G-DV
| Manufacturer | |
| Description | Conn Socket Strip SKT 16 POS 2mm Solder ST SMD Tube CONN RCPT 2MM 16POS DUAL SMD Samtec TLE Series 2mm 16 Way 2 Row Straight PCB Socket Surface Mount Board to Board RECEPTACLE, 2MM, DUAL SMD, 16WAY Samtec TLE 系列 2行 16路 直 2mm节距 表面贴装 印刷电路板插座, 板对板 |
| Category |
商业参数
| 其他名称 | SAM1251-08 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85369010 |
机械参数
| 颜色 | Black | 深度 | 4 |
| 间距 | 2 mm | 高度 | 4.5 |
| 重量 | 0.001 | 包装方式 | Tube |
| 排间距 | 0.079" (2.00mm) | 端接方式 | Solder |
| 触头类型 | Female Socket | 引脚间距 | :2mm |
| 柱间距 | :2mm | 外壳颜色 | Black |
| 安装类型 | Surface Mount | 连接器类型 | Receptacle, Pass Through |
| 接触镀层 | Gold Over Nickel | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Liquid Crystal Polymer |
| 总长度 | 16 | 连接器颜色 | :Black |
| 触点数 | 16 | 接触件端接 | :Surface Mount Vertical |
| 位数 | 16 | 接触镀层厚度 | 10µin (0.25µm) |
产品信息
| 类型 | Socket Strip | 连接器性别 | SKT |
| 系列 | TLE | 加载位置数 | All |
环境参数
| 工作温度 | :125°C | ||
