点击放大查看

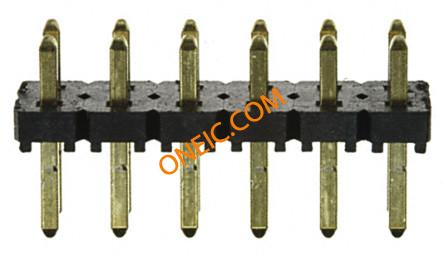

TLW-106-05-G-D
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole CONN HEADER .100" 12POS DL GOLD Samtec TLW Series 2.54mm Pitch 12 Way 2 Row Straight PCB Header, Solder Termination, 3A HEADER, 2.54MM, DUAL, 12WAY Samtec TLW Flex Stack 系列 2.54mm节距 12路 (2排) 直 引脚管座, 焊接端接, 3A , 通孔 |
| Category |
Business
| Other Names | SAM1094-06 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Current Rating (Max) | 3A | ||
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Weight | 0.001 | Packaging | Bulk |
| Row Spacing | 0.100" (2.54mm) | Termination | Solder |
| Contact Type | Male Pin | Lead Spacing | :2.54mm |
| Pitch - Post | :2.54mm | Mounting Type | Through Hole |
| Connector Type | Header, Unshrouded | Contact Finish | Gold Over Nickel |
| Number of Rows | 2 | Contact Material | Phosphor Bronze |
| Color - Connectors | :Black | Number of Contacts | 12 |
| Contact Termination | :Through Hole Vertical | Number of Positions | 12 |
| Contact Length - Mating | 0.105" (2.67mm) | Contact Finish Thickness | 10µin (0.25µm) |
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Series | TLW | Number of Positions Loaded | All |
Environmental
| Operating Temperature | :125°C | ||
Documents & Media
