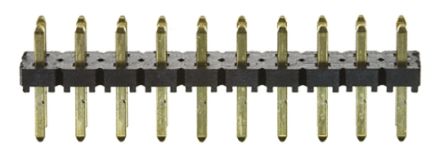

TLW-110-05-G-D
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole CONN HEADER .100" 20POS DL GOLD Samtec TLW Series 2.54mm Pitch 20 Way 2 Row Straight PCB Header, Solder Termination, 3A HEADER, 2.54MM, DUAL, 20WAY Samtec TLW Flex Stack 系列 2.54mm节距 20路 (2排) 直 引脚管座, 焊接端接, 3A , 通孔 |
| Category |
商业参数
| 其他名称 | SAM1094-10 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 最大额定电流 | 3A | ||
机械参数
| 颜色 | Black | 深度 | 5.03 |
| 间距 | 2.54 mm | 高度 | 4.19 |
| 重量 | 0.001 | 包装方式 | Bulk |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚间距 | :2.54mm |
| 柱间距 | :2.54mm | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Gold Over Nickel | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Liquid Crystal Polymer |
| 总长度 | 25.4 | 连接器颜色 | :Black |
| 触点数 | 20 | 接触件端接 | :Through Hole Vertical |
| 位数 | 20 | 接触长度 - 配合 | 0.105" (2.67mm) |
| 接触镀层厚度 | 10µin (0.25µm) | ||
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | TLW | 加载位置数 | All |
环境参数
| 工作温度 | :125°C | ||
