TMM-102-01-G-S
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 2 POS 2mm Solder ST Thru-Hole Conn Unshrouded Header HDR 2 POS 2mm Solder ST Thru-Hole Bulk CONN HEADER 2POS SNGL 2MM T/H Samtec TMM Series 2mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 3.9A HEADER, 2MM, SINGLE THRU HOLE, 2WAY Samtec TMM 系列 2mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 3.9A |
| Category |
Business
| Other Names | SAM1174-02 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Voltage Rating | 500 V ac | Current Rating (Max) | 3.9A |
| Voltage - Input (Min) | 500VAC | ||
Mechanical
| Color | Black | Depth | 1.97 |
| Pitch | 2 mm | Height | 4.7 |
| Weight | 0.001 | Packaging | Bulk |
| Termination | Solder | Contact Type | Male Pin |
| Lead Spacing | :2mm | Housing Color | Black |
| Mounting Type | Through Hole | Connector Type | Header, Unshrouded |
| Contact Finish | Gold Over Nickel | Number of Rows | 1 |
| Contact Material | Phosphor Bronze | Housing Material | Liquid Crystal Polymer |
| Length - Overall | 4 | Color - Connectors | :Black |
| Number of Contacts | 2 | Contact Termination | :Through Hole Vertical |
| Number of Positions | 2 | Contact Length - Mating | 0.126" (3.20mm) |
| Contact Finish Thickness | 20µin (0.51µm) | ||
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Series | TMM | Number of Positions Loaded | All |
Environmental
| Operating Temperature | :125°C | ||
Documents & Media
Similar Parts

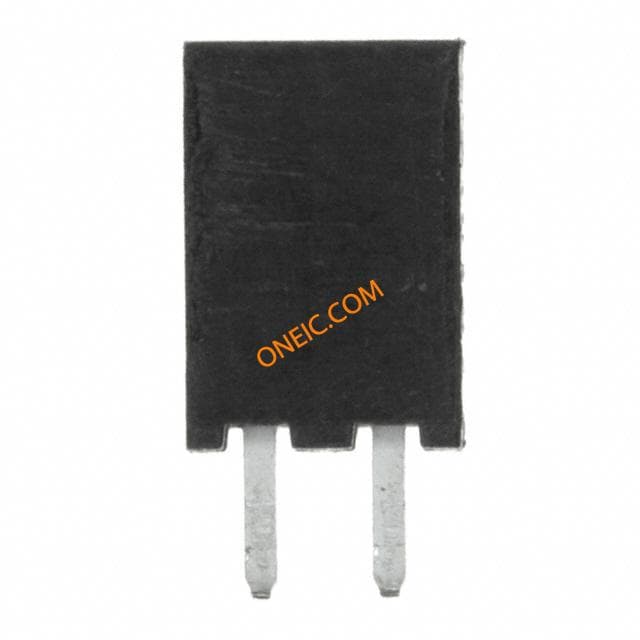

SQT-102-01-L-S
samtec inc.
Conn Socket Strip SKT 2 POS 2mm Solder ST Thru-Hole CONN RCPT 2MM 2POS SGL VERT PCB Receptacle 2mm vertical 2way RECEPTACLE, 2MM, VERT, 2WAY Samtec SQT 系列 2路 直 2mm节距 通孔 印刷电路板插座, 板对板
MMS-102-01-L-SV
samtec inc.
Conn Socket Strip SKT 2 POS 2mm Solder ST Thru-Hole Tube CONN RCPT 2MM 2POS SGL VERT PCB SOCKET, 2.0MM, VERT, 1X2WAY
SQT-102-01-L-S-RA
samtec inc.
Conn Socket Strip SKT 2 POS 2mm Solder RA Thru-Hole CONN RCPT 2MM 2POS SGL R/A PCB Receptacle 2mm horizontal 2way RECEPTACLE, 2MM, R/A, 2WAY Samtec SQT 系列 2路 直角 2mm节距 通孔 印刷电路板插座, 板对板
MMS-102-02-L-SV
samtec inc.
Conn Socket Strip SKT 2 POS 2mm Solder ST SMD Tube CONN RCPT 2MM 2POS SGL VERT SMD SOCKET, 2.0MM, VERT, 1X2WAY
SQT-102-01-F-S
samtec inc.
Conn Socket Strip SKT 2 POS 2mm Solder ST Thru-Hole CONN RCPT 2MM 2POS SGL VERT PCB
MMS-102-02-T-SV
samtec inc.
Conn Socket Strip SKT 2 POS 2mm Solder ST SMD Tube CONN RCPT 2MM 2POS SGL VERT SMD
MMS-102-01-L-SH
samtec inc.
Conn Socket Strip SKT 2 POS 2mm Solder RA Thru-Hole Tube CONN RCPT 2MM 2POS SGL HORZ PCB SOCKET, 2.0MM, HORIZ, 1X2WAY

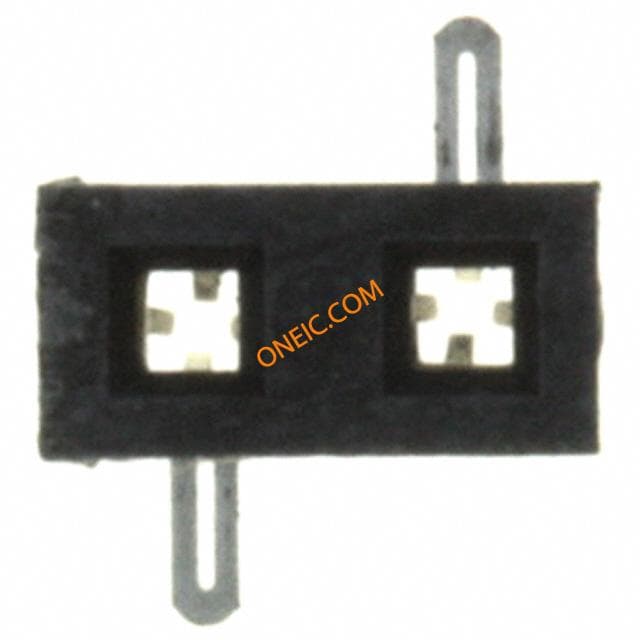

SMM-102-02-S-S
