点击放大查看
TMM-104-01-G-D-SM
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | SAM1167-04 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Voltage Rating | 500 V ac | Current Rating (Max) | 3.9A |
| Voltage - Input (Min) | 500VAC | ||
Mechanical
| Color | Black | Depth | 3.94 |
| Pitch | 2 mm | Height | 5.97 |
| Weight | 0.001 | Packaging | Tube |
| Row Spacing | 0.079" (2.00mm) | Termination | Solder |
| Contact Type | Male Pin | Lead Spacing | :2mm |
| Pitch - Post | :2mm | Housing Color | Black |
| Mounting Type | Surface Mount | Connector Type | Header, Unshrouded |
| Contact Finish | Gold Over Nickel | Number of Rows | 2 |
| Contact Material | Phosphor Bronze | Housing Material | Liquid Crystal Polymer |
| Length - Overall | 8 | Color - Connectors | :Black |
| Number of Contacts | 8 | Contact Termination | :Surface Mount Vertical |
| Number of Positions | 8 | Contact Length - Mating | 0.126" (3.20mm) |
| Contact Finish Thickness | 20µin (0.51µm) | ||
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Series | TMM | Number of Positions Loaded | All |
Environmental
| Operating Temperature | :125°C | ||
Documents & Media
Similar Parts
CLT-104-01-G-D
samtec inc.
$3.8536
Details
SMM-104-02-S-D-K-TR
samtec inc.
$9.2480
Details
MMS-104-02-L-DV
samtec inc.
$10.4550
Details
SQW-104-01-L-D
samtec inc.
$8.3198
Details
MMS-104-01-T-DH
samtec inc.
$5.4550
Details
SMM-104-02-S-D
samtec inc.
$7.9560
Details
SQT-104-01-L-D
samtec inc.
$12.0904
Details
MMS-104-01-L-DH
samtec inc.
$12.7153
Details
MMS-104-02-T-DV
samtec inc.
$4.1405
Details
SQT-104-01-L-D-RA
samtec inc.
$11.2003
Details
SMM-104-02-S-D-LC
samtec inc.
$126.2080
Details

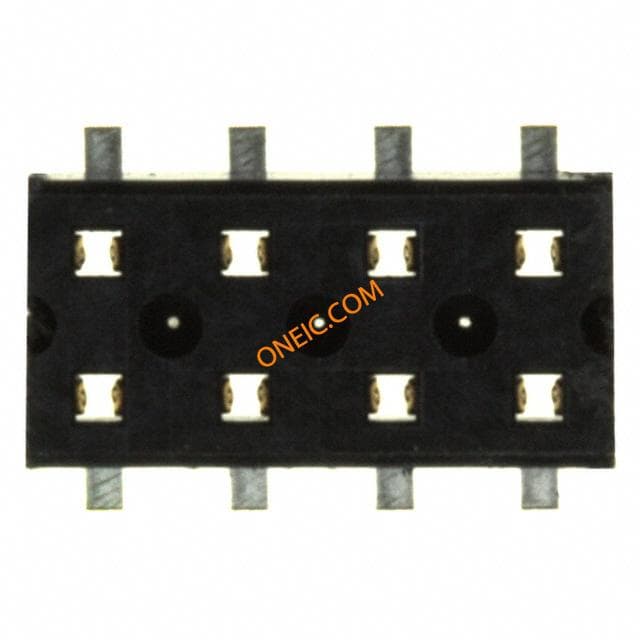

CLT-104-02-L-D
