点击放大查看

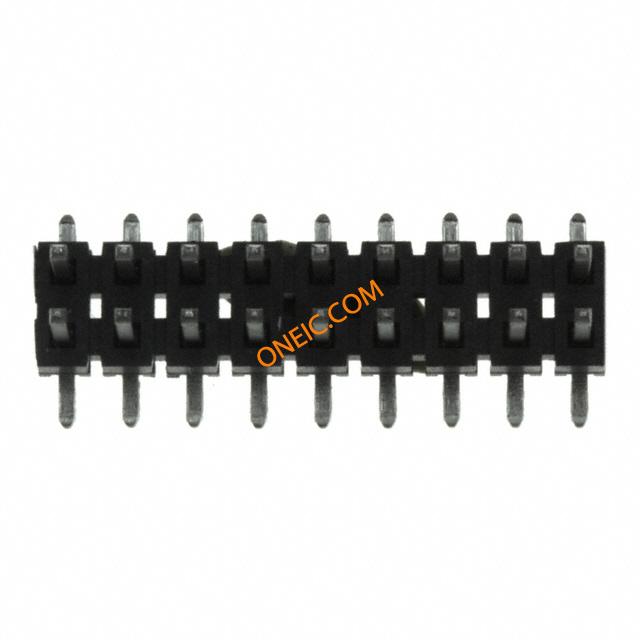

TMM-109-01-T-D-SM
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 18 POS 2mm Solder ST SMD Tube CONN HEADER 18POS DUAL 2MM SMD HEADER, 2.0MM, SMT, 2X9WAY |
| Category |
商业参数
| 其他名称 | SAM1171-09 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
机械参数
| 颜色 | Black | 间距 | 2 mm |
| 重量 | 0.0005 | 包装方式 | Bulk |
| 排间距 | 0.079" (2.00mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Surface Mount |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Matte Tin Over Nickel |
| 排数 | 2 | 触头材料 | :Phosphor Bronze |
| 触点数 | 18 | 接触件端接 | :Surface Mount Vertical |
| 位数 | 18 | 接触长度 - 配合 | 0.126" (3.20mm) |
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | :- | 加载位置数 | All |
