点击放大查看

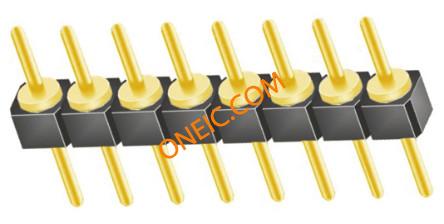

TS-108-G-A
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER .100" 8POS GOLD PCB Samtec TS Series 2.54mm Pitch 8 Way 1 Row Straight PCB Header, Solder Termination, 1A HEADER, 2.54MM, PCB, 8WAY Samtec TS 系列 2.54mm节距 8路 (1排) 直 引脚管座, 焊接端接, 1A , 通孔 |
| Category |
Business
| Other Names | SAM1111-08 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Current Rating (Max) | 1A | ||
Mechanical
| Color | Black | Pitch | 0.100" (2.54mm) |
| Weight | 0.001 | Packaging | Bulk |
| Termination | Solder | Lead Spacing | :2.54mm |
| Mounting Type | Through Hole | Connector Type | Unshrouded |
| Contact Finish | Gold Over Nickel | Number of Rows | 1 |
| Height (Inches) | 0.100" (2.54mm) | Contact Material | Phosphor Bronze |
| Color - Connectors | :Black | Number of Contacts | 8 |
| Contact Termination | :Through Hole Vertical | Number of Positions | 8 |
| Contact Length - Mating | 0.166" (4.22mm) | Contact Finish Thickness | 20µin (0.51µm) |
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Series | TS | Number of Positions Loaded | All |
Environmental
| Operating Temperature | :125°C | ||
Documents & Media
