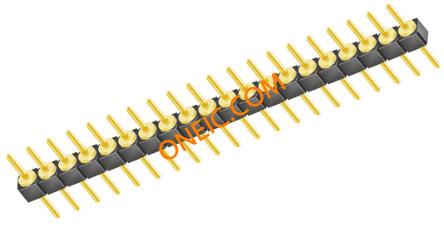

TS-120-G-A
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER .100" 20POS GOLD PCB Samtec TS Series 2.54mm Pitch 20 Way 1 Row Straight PCB Header, Solder Termination, 1A HEADER, 2.54MM, PCB, 20WAY Samtec TS 系列 2.54mm节距 20路 (1排) 直 引脚管座, 焊接端接, 1A , 通孔 |
| Category |
Business
| Other Names | SAM1111-20 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Current Rating (Max) | 1A | ||
Mechanical
| Color | Black | Depth | 2.54 |
| Pitch | 0.100" (2.54mm) | Height | 8.16 |
| Weight | 0.001 | Packaging | Tube |
| Termination | Solder | Lead Spacing | :2.54mm |
| Housing Color | Black | Mounting Type | Through Hole |
| Connector Type | Unshrouded | Contact Finish | Gold Over Nickel |
| Number of Rows | 1 | Height (Inches) | 0.100" (2.54mm) |
| Contact Material | Brass | Housing Material | Polyester |
| Length - Overall | 50.8 | Color - Connectors | :Black |
| Number of Contacts | 20 | Contact Termination | :Through Hole Vertical |
| Number of Positions | 20 | Contact Length - Mating | 0.166" (4.22mm) |
| Contact Finish Thickness | 20µin (0.51µm) | ||
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Series | TS | Number of Positions Loaded | All |
Environmental
| Operating Temperature | :125°C | ||
Documents & Media
Similar Parts
SSA-120-W-T-RA
samtec inc.
Conn Socket Strip SKT 20 POS 2.54mm Wire Wrap RA Thru-Hole CONN RCPT .100" 20POS TIN WW R/A
SSA-120-S-T
samtec inc.
Conn Socket Strip SKT 20 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 20POS TIN PCB
SS-120-G-2-N
samtec inc.
Conn Socket Strip SKT 20 POS 2.54mm Solder ST Thru-Hole Tube CONN RCPT .100" 20POS GOLD T/H
SSA-120-S-G
samtec inc.
Conn Socket Strip SKT 20 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 20POS GOLD PCB Receptacle 2.54mm snap-strip PCB 20way RECEPTACLE, 2.54MM, PCB, 20WAY Samtec SSA 系列 20路 直 2.54mm节距 通孔 印刷电路板插座, 板对板
SS-120-G-2
samtec inc.
Conn Socket Strip SKT 20 POS 2.54mm Solder ST Thru-Hole Tube CONN RCPT .100" 20POS GOLD T/H
SS-120-T-2-N
samtec inc.
Conn Socket Strip SKT 20 POS 2.54mm Solder ST Thru-Hole Tube CONN RCPT .100" 20POS GOLD T/H Receptacle 2.54mm low profile 20way RECEPTACLE, 2.54MM, THRU HOLE, 20WAY Samtec SS 系列 20路 直 2.54mm节距 通孔 印刷电路板插座, 板对板
SSA-120-W-G
samtec inc.
Conn Socket Strip SKT 20 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 20POS GOLD WW
SS-120-T-2
samtec inc.
Conn Socket Strip SKT 20 POS 2.54mm Solder ST Thru-Hole Tube CONN RCPT .100" 20POS GOLD T/H
SS-120-TT-2
samtec inc.
Conn Socket Strip SKT 20 POS 2.54mm Solder ST Thru-Hole Tube CONN RCPT .100" 20POS TIN T/H
SSA-120-W-T
samtec inc.
Conn Socket Strip SKT 20 POS 2.54mm Wire Wrap ST Thru-Hole CONN RCPT .100" 20POS TIN WW
SS-120-TT-2-N
samtec inc.
Conn Socket Strip SKT 20 POS 2.54mm Solder ST Thru-Hole Tube CONN RCPT .100" 20POS TIN T/H
SSA-120-W-G-RA
samtec inc.
Conn Socket Strip SKT 20 POS 2.54mm Solder RA Thru-Hole CONN RCPT .100" 20PS GOLD WW R/A
