点击放大查看

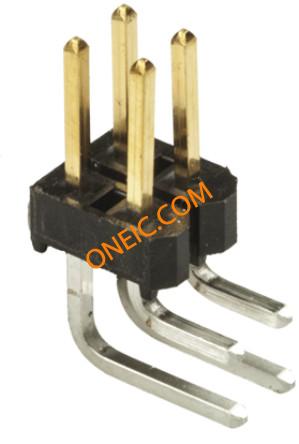

TSW-102-08-L-D-RA
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole CONN HEADER 4POS .100 DL R/A AU Samtec TSW Series 2.54mm Pitch 4 Way 2 Row Right Angle PCB Header, Solder Termination, 7.6A HEADER, 2.54MM, THT, R/A, 4WAY Samtec TSW 系列 2.54mm节距 4路 (2排) 直角 PCB 针座, 焊接端接, 7.6A |
| Category |
商业参数
| 其他名称 | SAM1041-02 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85366930 |
电气参数
| 额定电压 | 450 V ac | 最大额定电流 | 7.6A |
| 最小输入电压 | 450VAC | ||
机械参数
| 颜色 | Black | 深度 | 12.44 |
| 间距 | 2.54 mm | 高度 | 5.56 |
| 重量 | 0.01 | 包装方式 | Bulk |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 柱间距 | :2.54mm |
| 外壳颜色 | Black | 安装类型 | Right Angle |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Gold Over Nickel |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester | 总长度 | 5.08 |
| 触点数 | 4 | 接触件端接 | :Through Hole Right Angle |
| 位数 | 4 | 接触长度 - 配合 | 0.230" (5.84mm) |
| 接触镀层厚度 | 10µin (0.25µm) | ||
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | TSW | 加载位置数 | All |
