TSW-103-07-G-S
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | SAM1029-03 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85366930 |
Electrical
| Current Rating (Max) | 7 A | Voltage - Input (Min) | 550VAC |
| Voltage - Supply (Min) | 550VAC | ||
Mechanical
| Color | Black | Depth | 2.54 mm |
| Pitch | 0.100" (2.54mm) | Height | 8.38 mm |
| Weight | 0.01 | Packaging | Bulk |
| Termination | Solder | Contact Type | Male Pin |
| Housing Color | Black | Mounting Type | Through Hole |
| Connector Type | Header, Unshrouded | Contact Finish | Gold Over Nickel |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Contact Material | Phosphor Bronze | Housing Material | Polyester |
| Length - Overall | 7.62 mm | Number of Contacts | 3 |
| Contact Termination | :Through Hole Vertical | Number of Positions | 3 |
| Contact Length - Mating | 0.230" (5.84mm) | Contact Finish Thickness | 10µin (0.25µm) |
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Series | :TSW | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -55C to 125C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts
SLW-103-01-G-S
samtec inc.
$2.9531
Details
SSM-103-S-SV
samtec inc.
$7.4800
Details
BCS-103-L-S-TE
samtec inc.
$8.1804
Details
SSW-103-01-T-S
samtec inc.
$3.6720
Details
BCS-103-L-S-HE
samtec inc.
$15.6325
Details
ESW-103-33-T-S
samtec inc.
$6.5960
Details
SSQ-103-02-G-S
samtec inc.
$2.8560
Details
CES-103-01-T-S
samtec inc.
$2.4358
Details
SLW-103-01-T-S
samtec inc.
$2.9104
Details
ESW-103-12-T-S
samtec inc.
$2.7554
Details
SSW-103-01-G-S
samtec inc.
$2.8628
Details
SSQ-103-03-G-S
samtec inc.
$5.0238
Details
SSQ-103-01-G-S
samtec inc.
$5.9119
Details
SSQ-103-01-S-S
samtec inc.
$8.7346
Details
SSW-103-02-S-S
samtec inc.
$2.3120
Details
SSM-103-L-SV
samtec inc.
$5.9122
Details
SSW-103-02-G-S-RA
samtec inc.
$6.9834
Details
SSW-103-02-S-P-RA
samtec inc.
$12.0136
Details

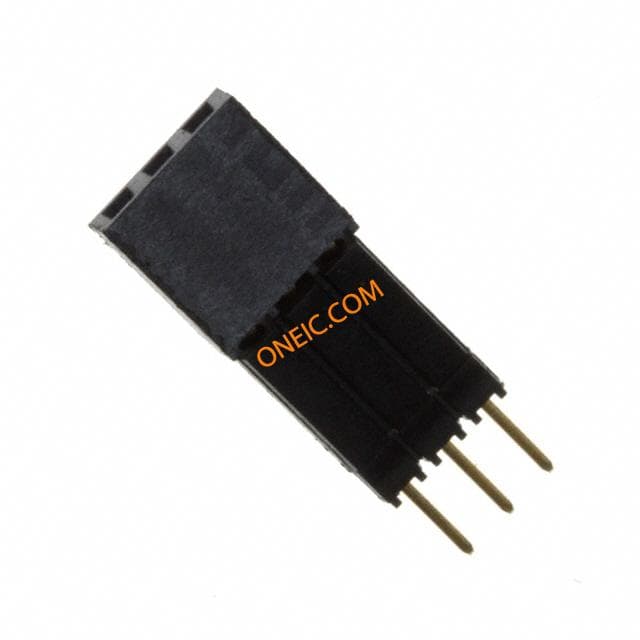

ESQ-103-44-G-S
