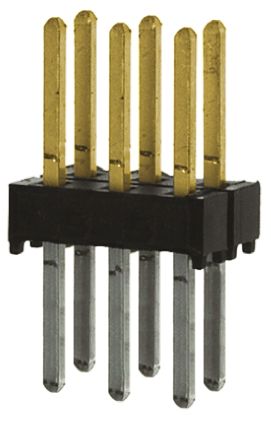

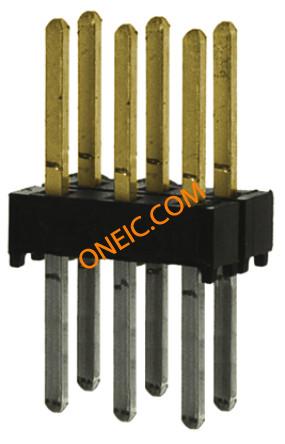

TSW-103-08-L-D

Manufacturer	Samtec, Inc.
Description	Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Bulk CONN HEADER 6POS .100" DUAL GOLD Samtec TSW Series 2.54mm Pitch 6 Way 2 Row Straight PCB Header, Solder Termination, 7.6A HEADER, 2.54MM, THT VERT, 6WAY Samtec TSW 系列 2.54mm节距 6路 (2排) 直引脚管座, 焊接端接, 7.6A , 通孔
Category	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

其他名称

SAM1040-03

标准包装数量

Bulk

合规参数

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
欧盟RoHS	Compliant	海关税号	85366930

电气参数

额定电压	550 V ac	最大额定电流	7.6A
最小输入电压	550VAC

机械参数

颜色	Black	深度	5.08
间距	2.54 mm	高度	8.38
重量	0.01	包装方式	Bulk
排间距	0.100" (2.54mm)	端接方式	Solder
触头类型	Male Pin	柱间距	:2.54mm
外壳颜色	Black	安装类型	Through Hole
连接器类型	Header, Unshrouded	接触镀层	Gold Over Nickel
排数	2	触头材料	Phosphor Bronze
壳体材料	Polyester	总长度	7.62
触点数	6	接触件端接	:Through Hole Vertical
位数	6	接触长度 - 配合	0.230" (5.84mm)
接触镀层厚度	10µin (0.25µm)

产品信息

类型	Unshrouded Header	连接器性别	HDR
系列	TSW	加载位置数	All
