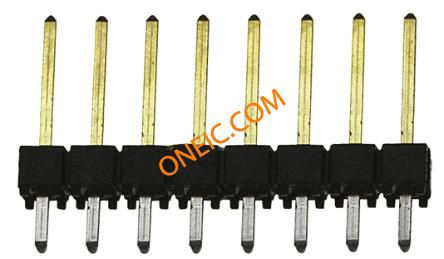

TSW-108-14-L-S
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | SAM1055-08 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85366930 | ||
Electrical
| Voltage Rating | 550 V ac | Current Rating (Max) | 7.6A |
Mechanical
| Color | Black | Pitch | 0.100" (2.54mm) |
| Weight | 0.01 | Packaging | Bulk |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Through Hole | Connector Type | Header, Unshrouded |
| Contact Finish | Gold Over Nickel | Number of Rows | 1 |
| Contact Material | Phosphor Bronze | Number of Contacts | 8 |
| Contact Termination | :Through Hole Vertical | Number of Positions | 8 |
| Contact Length - Mating | 0.320" (8.13mm) | Contact Finish Thickness | 10µin (0.25µm) |
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Series | TSW | Number of Positions Loaded | All |
Documents & Media
PDF Document
PDF Document
