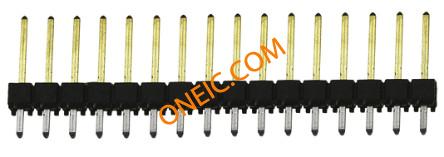

TSW-116-14-L-S
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | SAM1055-16 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85366930 |
Electrical
| Voltage Rating | 550 V ac | Current Rating (Max) | 7.6A |
| Voltage - Input (Min) | 550VAC | ||
Mechanical
| Color | Black | Depth | 2.54 |
| Pitch | 0.100" (2.54mm) | Height | 10.67 |
| Weight | 0.01 | Packaging | Bulk |
| Termination | Solder | Contact Type | Male Pin |
| Housing Color | Black | Mounting Type | Through Hole |
| Connector Type | Header, Unshrouded | Contact Finish | Gold Over Nickel |
| Number of Rows | 1 | Contact Material | Phosphor Bronze |
| Housing Material | Polyester | Length - Overall | 40.64 |
| Number of Contacts | 16 | Contact Termination | :Through Hole Vertical |
| Number of Positions | 16 | Contact Length - Mating | 0.320" (8.13mm) |
| Contact Finish Thickness | 10µin (0.25µm) | ||
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Series | TSW | Number of Positions Loaded | All |
