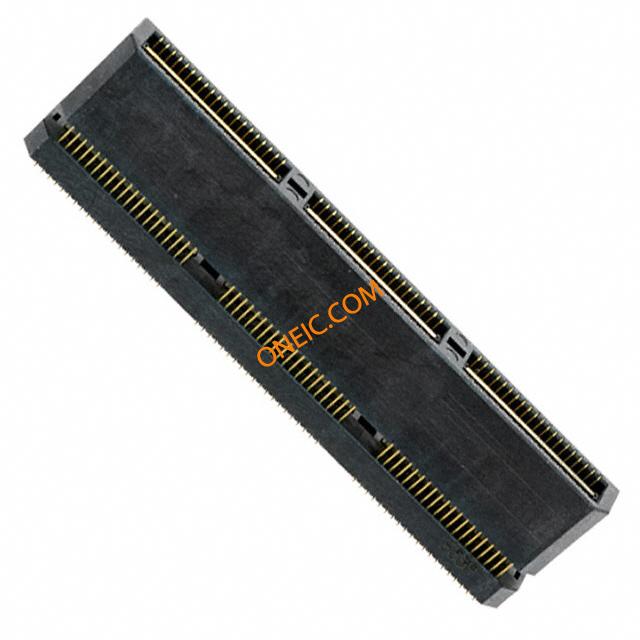

QTE-060-04-L-D-A
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Voltage Rating | 225 V ac | Current Rating (Max) | 1.3A |
| Voltage - Input (Min) | 225VAC | ||
Mechanical
| Depth | 6.73 | Pitch | 0.031" (0.80mm) |
| Height | 15.25 | Weight | 0.001 |
| Packaging | Tray | Termination | Solder |
| Lead Spacing | :0.8mm | Pitch - Post | :3.94mm |
| Housing Color | Black | Mounting Type | Surface Mount |
| Connector Type | Header, Outer Shroud Contacts | Contact Finish | Gold Over Nickel |
| Number of Rows | 2 | Contact Material | Phosphor Bronze |
| Housing Material | Liquid Crystal Polymer | Length - Overall | 60 |
| Height Above Board | 0.600" (15.25mm) | Number of Contacts | 120 |
| Contact Termination | :Solder | Number of Positions | 120 |
| Mated Stacking Heights | 16mm | Contact Finish Thickness | 10µin (0.25µm) |
Product Info
| Type | High Speed Micro Plane | Gender | HDR |
| Series | QTE | Features | Board Guide, Ground Bus (Plane) |
Environmental
| Mating Cycles | :100 | Operating Temperature | :125°C |
Documents & Media
Sourcing & traceability
- Datasheet
- QTE Series Drawing
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
