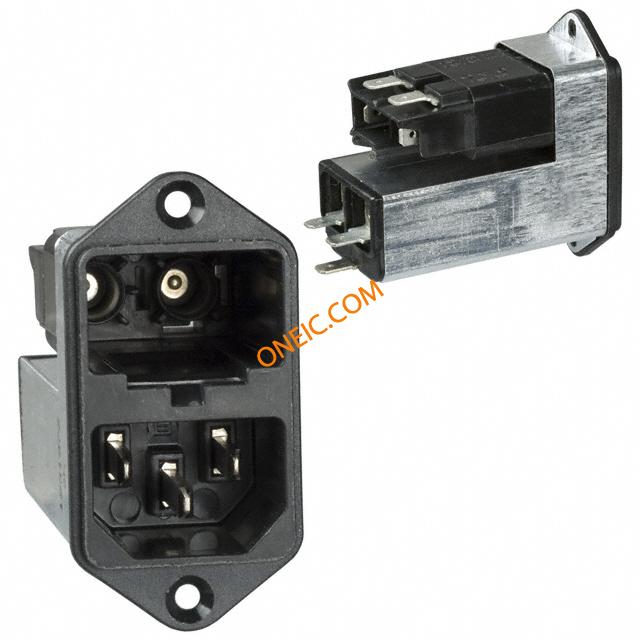

4303.5005

点击放大查看

4303.5005

Manufacturer
Schurter Holding AG
Description
Power Entry Module Filtered M 3 POS 250VAC 10A Fuse ST 1 Port KFC G-STECKER-KOMBI MIT FILTER 10A MOD PWR ENTRY 2POS HLDR 10A PNL Module; Power Entry; 2; 125/250 VAC @ 50/60 Hz; 10 A; Black (Housing); Standard AC Power Entry Modules KFC PWR ENTRY MODULE W. FILTER 10A INLET FILTER, IEC, C14, KFC, 10A Module,PowerEntry;2;125/250VAC@50/60Hz;10A;Black(Housing);Standard Connector: IEC 60320,AC mains; KFC; C14 (E), with filter,2x fuse Power inlet with filter 10 A 250 VAC, 4303.5005, Schurter
Category
连接器解决方案电源输入连接器电源输入连接器
对参数有疑问？问 AI 助手

商业参数

最小起订量10产品Inlets
单位包装10标准包装数量Bulk
工厂包装数量10

合规参数

RoHSLead free / RoHS CompliantSVHC:No SVHC (20-Jun-2013)
标准ULRecognized,CSACertified,VDEApproved海关税号85363090
材料阻燃等级UL94V-0

电气参数

电流10A电压125/250VAC
电感量2×0.3mH电容:0.068µF
滤波器类型General Purpose额定电压:250VAC
极数1开关功能Switched
电感量范围:300µH漏电流<0.5mA
介电强度>1.7kVDC(L-N),>2.7kVDC(L/N-PE)最大额定电流:10A
最小输入电压250 Vac连接器类型 - 电压输入without fusedrawer
漏电流（IS(off)）（最大）:500µA

机械参数

颜色Black(Housing)重量2.328081 oz
端接方式Solder Lug安装类型Flange Mount
连接器类型IEC/EN 60320-1/C14|UL 498|CSA C22.2安装样式Panel/Screw-On
保险丝座类型Sold Separately面板厚度8mm
壳体材料Thermoplastic包装数量10
连接器 - 电缆socket端接样式Quick Connect
触点数3面板开孔形状28.5×50mm

产品信息

SPG10类型Filtered
带保险丝Yes连接器性别Male
系列KFC产品特性Fuse Holder
保险丝尺寸5x20mm, 6,3x32mm适配器系列KFC
单元数量1固件版本Standard

环境参数

工作温度-25to+85°C可用温度范围-25to+85°C

Documents & Media

PDF Document
RoHS, EMC Products
Archive
KFC Series.wrl
Archive
KFC Series.stp
Archive
KFC Series.igs
Archive
KFC Series.x_b
PDF Document
typ_KFC.pdf
PDF Document
KFC w/Fuseholder 5x20mm
PDF Document
1348686.pdf
PDF Document
typ_kfc.pdf
PDF Document
1533742.pdf
