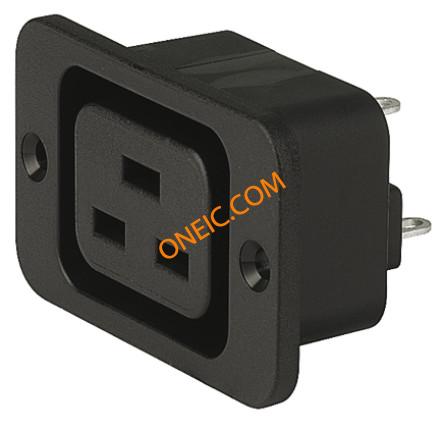

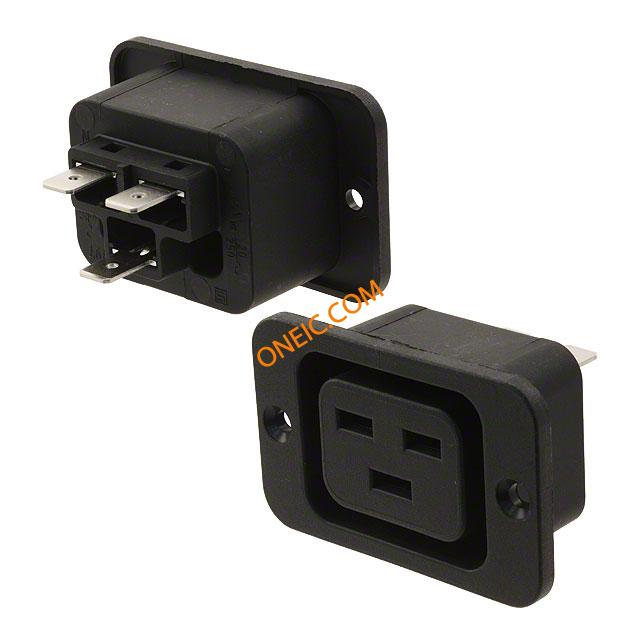

4797.0000
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 50 | Product | Outlets |
| Unit Pack | 50 | Other Names | 486-1068 |
| Product Category | AC Power Entry Modules | Standard Package | Bulk |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | Approval Agency | :CCC |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 20A | Voltage | 250V |
| Filter Type | No | Voltage - Test | 2.5kV |
| Voltage Rating | 250 V ac | Switch Function | Not Switched |
| Voltage - Supply | 50/60Hz | Current Rating (Max) | 20A |
| Connector - Voltage Input | C19 (J) | ||
Mechanical
| Depth | :36.8mm | Width | :34mm |
| Length | :54mm | Weight | 0.740753 oz |
| AC Outlets | :1 | Lead Style | for soldering |
| Termination | :Tab | Mounting Type | Panel Mount |
| Terminal Type | :Tab | Connector Type | Receptacle, Female Sockets |
| Mounting Style | Screw | Package / Case | :Thermoplastic |
| Connector Style | IEC 320-C19 | Fuseholder Type | Drawer Not Required |
| Panel Thickness | max 8mm | Housing Material | Thermoplastic |
| Package Quantity | 50 | Connector - Cable | C19 |
| Termination Style | Quick Connect - 0.250" (6.3mm) | Color - Connectors | :Black |
| Contact Termination | :Quick Connect | Number of Positions | 3 |
| Mounting Hole Spacing | 45mm | Mounting Hole Diameter | 37.6 x 29.5mm |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Spg | 50 | Type | Inlets/Outlets |
| Fused | No | Gender | F |
| Series | 4797 | Number of Units | 1 |
Environmental
| Operating Temperature | - 25 C to + 70 C | ||
