点击放大查看

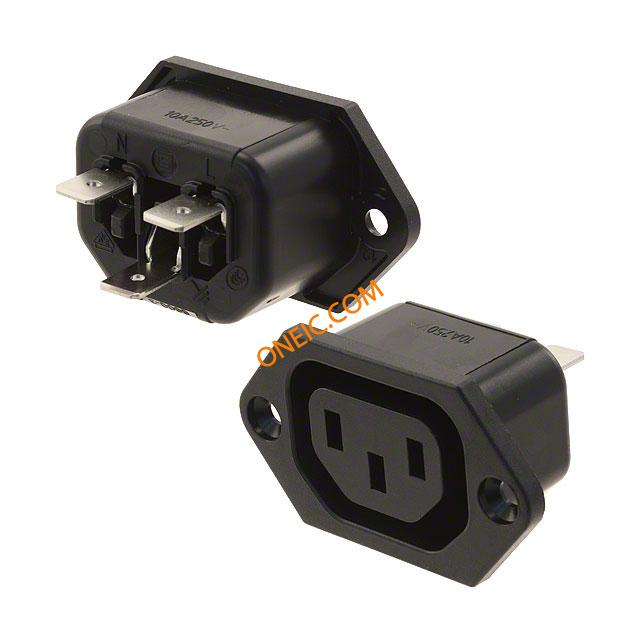

6600.3300
| Manufacturer | |
| Description | Conn Outlets RCP 3 POS Faston ST Panel Mount 3 Terminal 1 Port 6600.3300.BF APPLIANCE MODULE PWR OUTLET SCREW-ON C13 Female Straight Panel Mount IEC Connector, Rated At 15A, 250V ac AC Power Entry Modules SCREW-ON .250 QC OUTLET, IEC, GST Outlet;Screw-OnMount;10A;250VAC;gt10Megohms@500VDC,1Minute;Black Connector: IEC 60320,AC mains; C13 (F); socket; female; 10A Flush-mounted device socket C13 Screw mounting, 6600.3300, Schurter Schurter C13 面板安装 直向 插座 IEC 插头, 额定15A, 250 V 交流 |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 最小起订量 | 100 | 产品 | Outlets |
| 交货时间 | 20 Days | 单位包装 | 50 |
| 子类别 | Connector Power | 产品类别 | AC Power Entry Modules |
| 标准包装数量 | Bulk | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85366990 | 汽车级 | NO |
| 无铅定义 | RoHS-conform | 认证机构 | :CCC |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 | 10A | 电压 | 250V |
| 滤波器类型 | No | 额定电压 | 250 Vac |
| 开关功能 | Not Switched | 接触电阻 | :5mohm |
| 介电强度 | :2000V | 最大额定电流 | 15A |
| 绝缘电阻 | :10Mohm | 连接器类型 - 电压输入 | C13 (F) |
机械参数
| 重量 | 0.423288 oz | 交流输出口 | :1 |
| 引脚样式 | 6.3x0.8mm connectors | 端接方式 | Faston |
| 安装类型 | Panel Mount | 连接器类型 | Receptacle, Female Sockets |
| 安装样式 | Screw | 连接器样式 | IEC 320-C13 |
| 保险丝座类型 | Drawer Not Required | 壳体材料 | Thermoplastic |
| 包装数量 | 50 | 尺寸/外形 | see |
| 连接器 - 电缆 | C13 | 端接样式 | Quick Connect - 0.250" (6.3mm) |
| 接触件端接 | :Quick Connect | 位数 | 3 |
| 外壳与棱镜材料 | :Thermoplastic UL94V-0 | 第一连接器安装类型 | :Panel |
产品信息
| SPG | 50 | 类型 | Outlets |
| 带保险丝 | No | 连接器性别 | RCP |
| 系列 | 6600-3 | 匹配码 | 6600-3 |
| CAD图纸 | 3D CAD Model | 单元数量 | 1 |
| 固件版本 | CLASS I | 行业别名 | 6600.33 |
| 标准交期 | 6 weeks | ||
环境参数
| 工作温度 | - 25 C to + 70 C | ||
